Installing and Managing a Multi-Tenant K8s Cluster
This post explores my experiences with installing a k8s cluster, managing it, and setting up a multi-tenant containers-as-a-service environment.
Installing k8s¶
For this MVP setup, we will use a single GPU node. Fortunately I work at a company where getting access to large GPU servers isn't too difficult.
We follow the instructions at https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/install-kubeadm/.
We see the kubelet is crashlooping as expected, as it hasn't received instructions from kubeadm yet:
Text Only
# systemctl status kubelet
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/lib/systemd/system/kubelet.service; enabled; vendor preset: enabled)
Drop-In: /usr/lib/systemd/system/kubelet.service.d
└─10-kubeadm.conf
Active: activating (auto-restart) (Result: exit-code) since Wed 2025-07-30 18:21:41 UTC; 1s ago
Docs: https://kubernetes.io/docs/
Process: 2249230 ExecStart=/usr/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_KUBEADM_ARGS $KUBELET_EXTRA_ARGS (code=exited, status=1/FAILURE)
Main PID: 2249230 (code=exited, status=1/FAILURE)
Configuring the container runtime¶
My hypervisor already has docker configured. You can see I have a leftover nats cluster:
Text Only
# docker container ls
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
3d5c452fa47b nats "/nats-server --clus…" 2 months ago Up 2 months 4222/tcp, 6222/tcp, 8222/tcp docker-nats-2-1
6f5b78b90ff8 nats "/nats-server --clus…" 2 months ago Up 2 months 4222/tcp, 6222/tcp, 8222/tcp docker-nats-1-1
ba97e9fa833b nats "/nats-server --clus…" 2 months ago Up 2 months 0.0.0.0:4222->4222/tcp, 0.0.0.0:6222->6222/tcp, 0.0.0.0:8222->8222/tcp docker-nats-1
Enabling IPv4 packet forwarding¶
We need to allow the kernel to forward IPv4 packets between interfaces. Technically speaking, this is only needed in multi-node environments, but it's worth mentioning anyway:
Text Only
# sysctl params required by setup, params persist across reboots
cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
EOF
# Apply sysctl params without reboot
sudo sysctl --system
The setting has been enabled:
Configuring cgroup drivers¶
https://kubernetes.io/docs/setup/production-environment/container-runtimes/
Control groups are a Linux kernel feature that allow you to segment and isolate many parts of a system's resources. There are two main cgroup drivers k8s can use: the cgroupfs driver (enabled by default) and the recommended systemd cgroup driver. The cgroupfs driver, as the name suggests, interacts directly with the cgroup filesyste at /sys/fs/cgroup:
Text Only
# ls /sys/fs/cgroup
blkio cpu cpu,cpuacct cpuacct cpuset devices freezer hugetlb memory net_cls net_cls,net_prio net_prio perf_event pids rdma systemd unified
My system has both cgroup v1 and v2 installed:
Text Only
# mount | grep cgroup
tmpfs on /sys/fs/cgroup type tmpfs (ro,nosuid,nodev,noexec,mode=755)
cgroup2 on /sys/fs/cgroup/unified type cgroup2 (rw,nosuid,nodev,noexec,relatime,nsdelegate)
cgroup on /sys/fs/cgroup/systemd type cgroup (rw,nosuid,nodev,noexec,relatime,xattr,name=systemd)
cgroup on /sys/fs/cgroup/net_cls,net_prio type cgroup (rw,nosuid,nodev,noexec,relatime,net_cls,net_prio)
cgroup on /sys/fs/cgroup/cpu,cpuacct type cgroup (rw,nosuid,nodev,noexec,relatime,cpu,cpuacct)
cgroup on /sys/fs/cgroup/pids type cgroup (rw,nosuid,nodev,noexec,relatime,pids)
cgroup on /sys/fs/cgroup/perf_event type cgroup (rw,nosuid,nodev,noexec,relatime,perf_event)
cgroup on /sys/fs/cgroup/blkio type cgroup (rw,nosuid,nodev,noexec,relatime,blkio)
cgroup on /sys/fs/cgroup/freezer type cgroup (rw,nosuid,nodev,noexec,relatime,freezer)
cgroup on /sys/fs/cgroup/memory type cgroup (rw,nosuid,nodev,noexec,relatime,memory)
cgroup on /sys/fs/cgroup/cpuset type cgroup (rw,nosuid,nodev,noexec,relatime,cpuset)
cgroup on /sys/fs/cgroup/rdma type cgroup (rw,nosuid,nodev,noexec,relatime,rdma)
cgroup on /sys/fs/cgroup/devices type cgroup (rw,nosuid,nodev,noexec,relatime,devices)
cgroup on /sys/fs/cgroup/hugetlb type cgroup (rw,nosuid,nodev,noexec,relatime,hugetlb)
Quote
The cgroupfs driver is not recommended when systemd is the init system because systemd expects a single cgroup manager on the system. Additionally, if you use cgroup v2, use the systemd cgroup driver instead of cgroupfs.
We use systemd as the init system so we should follow their recommendation to use the systemd cgroup driver. They recommend the following yaml:
We can see it has been configured to load a config file from this location:
Text Only
# systemctl cat kubelet |& grep KUBELET_CONFIG_ARGS
Environment="KUBELET_CONFIG_ARGS=--config=/var/lib/kubelet/config.yaml"
We write:
YAML
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: "10.254.192.244"
port: 20250
serializeImagePulls: false
cgroupDriver: systemd
evictionHard:
memory.available: "100Mi"
nodefs.available: "10%"
nodefs.inodesFree: "5%"
imagefs.available: "15%"
imagefs.inodesFree: "5%"
To this file. The IP address used is the IP of the default interface as defined by ip r s.
Create the k8s cluster¶
Text Only
# kubeadm init
[init] Using Kubernetes version: v1.33.3
[preflight] Running pre-flight checks
W0730 18:44:39.635425 2257977 checks.go:1065] [preflight] WARNING: Couldn't create the interface used for talking to the container runtime: failed to create new CRI runtime service: validate service connection: validate CRI v1 runtime API for endpoint "unix:///var/run/containerd/containerd.sock": rpc error: code = Unimplemented desc = unknown service runtime.v1.RuntimeService
[WARNING SystemVerification]: cgroups v1 support is in maintenance mode, please migrate to cgroups v2
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action beforehand using 'kubeadm config images pull'
error execution phase preflight: [preflight] Some fatal errors occurred:
failed to create new CRI runtime service: validate service connection: validate CRI v1 runtime API for endpoint "unix:///var/run/containerd/containerd.sock": rpc error: code = Unimplemented desc = unknown service runtime.v1.RuntimeService[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher

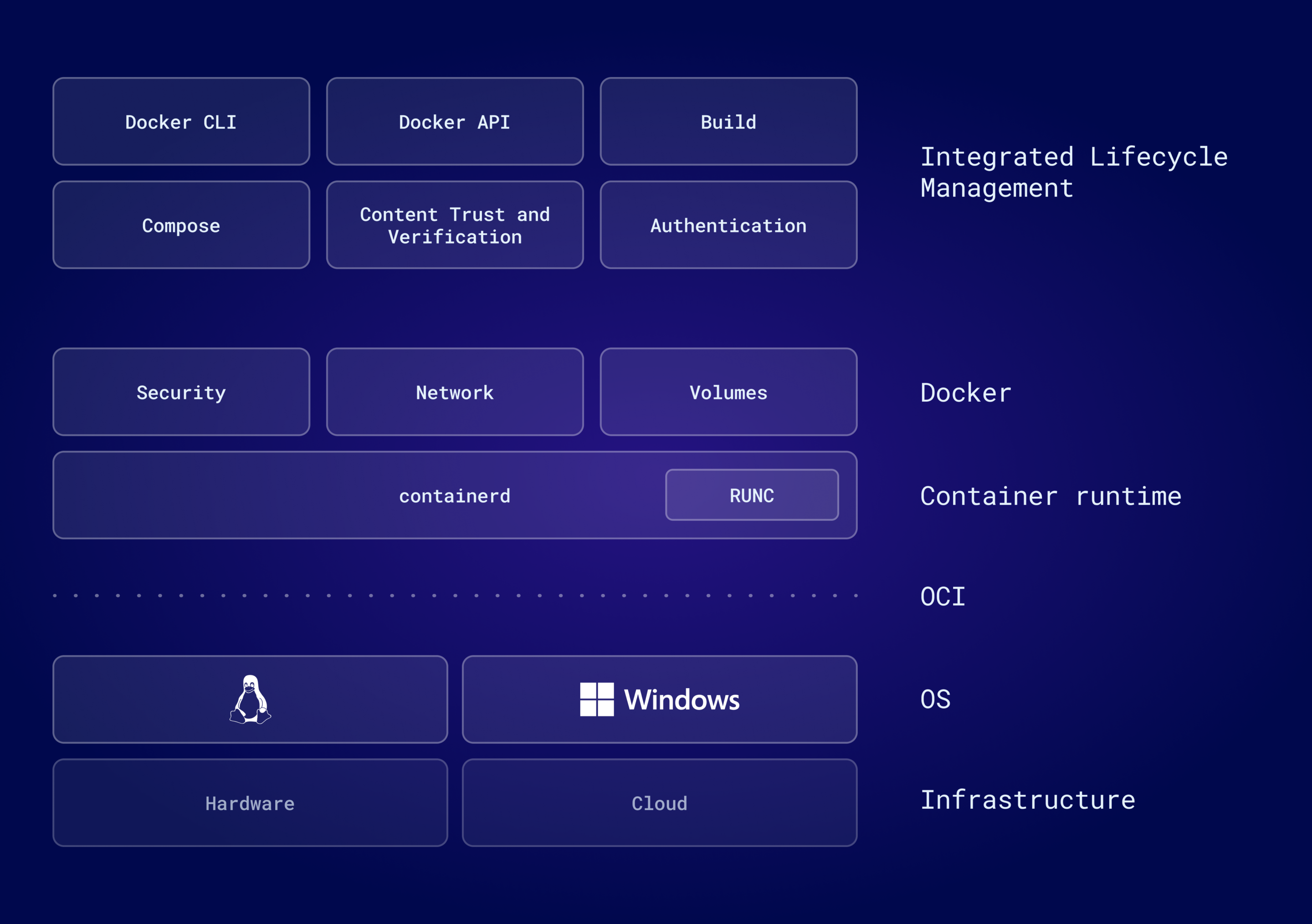

What is containerd?¶
https://www.docker.com/blog/containerd-vs-docker/
containerd is the container runtime environment. It interacts directly with your host operating system. Docker is an abstraction layer that sits on top of containerd and it provides additional concepts like volumes, image management (i.e. downloading and caching images from dockerhub), networking etc.
containerd CRI Plugin¶
It appears the container runtime is not configured correctly. We look at the containerd CLI enabled plugins:
Text Only
# ctr plugins ls
TYPE ID PLATFORMS STATUS
io.containerd.snapshotter.v1 aufs linux/amd64 skip
io.containerd.event.v1 exchange - ok
io.containerd.internal.v1 opt - ok
io.containerd.warning.v1 deprecations - ok
io.containerd.snapshotter.v1 blockfile linux/amd64 skip
io.containerd.snapshotter.v1 btrfs linux/amd64 skip
...
If we look at the containerd config, we see something interesting:
Text Only
# cat !$
cat /etc/containerd/config.toml
# Copyright 2018-2022 Docker Inc.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
# http://www.apache.org/licenses/LICENSE-2.0
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
disabled_plugins = ["cri"]
The CRI plugin is the Containers Runtime Interface, a gRPC API that kubernetes uses to talk to containerd. It seems obvious that we should comment out this line and restart containerd.
Text Only
# systemctl restart containerd
# systemctl status containerd
● containerd.service - containerd container runtime
Loaded: loaded (/lib/systemd/system/containerd.service; enabled; vendor preset: enabled)
Active: active (running) since Wed 2025-07-30 19:01:25 UTC; 1s ago
We try kubeadm init again:
Text Only
# kubeadm init --config ./kubeadm.yaml
W0730 19:01:56.158637 2266197 common.go:101] your configuration file uses a deprecated API spec: "kubeadm.k8s.io/v1beta3" (kind: "ClusterConfiguration"). Please use 'kubeadm config migrate --old-config old-config-file --new-config new-config-file', which will write the new, similar spec using a newer API version.
W0730 19:01:56.158889 2266197 initconfiguration.go:333] error unmarshaling configuration schema.GroupVersionKind{Group:"kubeadm.k8s.io", Version:"v1beta3", Kind:"ClusterConfiguration"}: strict decoding error: unknown field "localAPIEndpoint"
[init] Using Kubernetes version: v1.32.0
[preflight] Running pre-flight checks
[WARNING SystemVerification]: cgroups v1 support is in maintenance mode, please migrate to cgroups v2
error execution phase preflight: [preflight] Some fatal errors occurred:
[ERROR KubeletVersion]: the kubelet version is higher than the control plane version. This is not a supported version skew and may lead to a malfunctional cluster. Kubelet version: "1.33.3" Control plane version: "1.32.0"
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher
Config Schema Issue¶
We don't get the gRPC error this time. Great! But let's fix the config schema.
Diff
# diff kubeadm.yaml kubeadm-new.yaml
1,4c1,30
< apiVersion: kubeadm.k8s.io/v1beta3
< kind: ClusterConfiguration
< kubernetesVersion: v1.32.0
< controlPlaneEndpoint: "10.254.192.244:6443"
---
> apiVersion: kubeadm.k8s.io/v1beta4
> bootstrapTokens:
> - groups:
> - system:bootstrappers:kubeadm:default-node-token
> token: hw4taj.tacc97bn9dm2rdhz
> ttl: 24h0m0s
> usages:
> - signing
> - authentication
> kind: InitConfiguration
> localAPIEndpoint:
> advertiseAddress: 10.254.192.244
> bindPort: 6443
> nodeRegistration:
> criSocket: unix:///var/run/containerd/containerd.sock
> imagePullPolicy: IfNotPresent
> imagePullSerial: true
> name: inst-5c3dw-san-jose-dev-a10-hypervisors-pool
> taints:
> - effect: NoSchedule
> key: node-role.kubernetes.io/control-plane
> timeouts:
> controlPlaneComponentHealthCheck: 4m0s
> discovery: 5m0s
> etcdAPICall: 2m0s
> kubeletHealthCheck: 4m0s
> kubernetesAPICall: 1m0s
> tlsBootstrap: 5m0s
> upgradeManifests: 5m0s
> ---
7c33,48
< - "10.254.192.244"
---
> - 10.254.192.244
> apiVersion: kubeadm.k8s.io/v1beta4
> caCertificateValidityPeriod: 87600h0m0s
> certificateValidityPeriod: 8760h0m0s
> certificatesDir: /etc/kubernetes/pki
> clusterName: kubernetes
> controlPlaneEndpoint: 10.254.192.244:6443
> controllerManager: {}
> dns: {}
> encryptionAlgorithm: RSA-2048
> etcd:
> local:
> dataDir: /var/lib/etcd
> imageRepository: registry.k8s.io
> kind: ClusterConfiguration
> kubernetesVersion: v1.32.0
9,10c50,54
< podSubnet: "10.254.192.244/24"
< serviceSubnet: "10.254.192.244/24"
---
> dnsDomain: cluster.local
> podSubnet: 10.254.192.244/24
> serviceSubnet: 10.254.192.244/24
> proxy: {}
> scheduler: {}
# mv kubeadm-new.yaml kubeadm.yaml
There are a few more bugs to work out:
Text Only
# kubeadm init --config ./kubeadm.yaml
[init] Using Kubernetes version: v1.32.0
[preflight] Running pre-flight checks
[WARNING SystemVerification]: cgroups v1 support is in maintenance mode, please migrate to cgroups v2
error execution phase preflight: [preflight] Some fatal errors occurred:
[ERROR KubeletVersion]: the kubelet version is higher than the control plane version. This is not a supported version skew and may lead to a malfunctional cluster. Kubelet version: "1.33.3" Control plane version: "1.32.0"
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher
cgroupv2 issue¶
The kernel is indeed using cgroups v2:
Text Only
# mount | grep cgroup2
cgroup2 on /sys/fs/cgroup/unified type cgroup2 (rw,nosuid,nodev,noexec,relatime,nsdelegate)
I suspect that kubeadm is looking at the old cgroups v1 directory at /sys/fs/cgroup, not the unified subpath. After a minor bit of searching, it appears we need to reconfigure the kernel to only expose the cgroup v2 interface. Kubeadm/kubelet don't appear to have a way to override the path they use when finding the cgroupfs. Enabling cgroup v2 is a kernel commandline parameter, so we must do this:
Then update grub:
Text Only
# update-grub
Sourcing file `/etc/default/grub'
Sourcing file `/etc/default/grub.d/50-cloudimg-settings.cfg'
Sourcing file `/etc/default/grub.d/99-lambda.cfg'
Sourcing file `/etc/default/grub.d/init-select.cfg'
Generating grub configuration file ...
Found linux image: /boot/vmlinuz-5.14.15-custom
Found initrd image: /boot/initrd.img-5.14.15-custom
Adding boot menu entry for UEFI Firmware Settings
done
Then reboot the system:
After it comes back, we see that only cgroups v2 is mounted:
Text Only
# mount |& grep cgroup
cgroup2 on /sys/fs/cgroup type cgroup2 (rw,nosuid,nodev,noexec,relatime,nsdelegate)
Now that warning is gone:
Text Only
# kubeadm init --config ./kubeadm.yaml
[init] Using Kubernetes version: v1.32.0
[preflight] Running pre-flight checks
error execution phase preflight: [preflight] Some fatal errors occurred:
[ERROR KubeletVersion]: the kubelet version is higher than the control plane version. This is not a supported version skew and may lead to a malfunctional cluster. Kubelet version: "1.33.3" Control plane version: "1.32.0"
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher
To fix the version error, I just needed to change this line:
We should also first ensure that containerd is configured to use systemd cgroups.
/etc/containerd/config.toml
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
SystemdCgroup = true
We run it again and success!
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# kubeadm init --config ./kubeadm.yaml
[init] Using Kubernetes version: v1.33.3
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action beforehand using 'kubeadm config images pull'
W0811 19:08:42.537308 2920198 checks.go:846] detected that the sandbox image "registry.k8s.io/pause:3.8" of the container runtime is inconsistent with that used by kubeadm.It is recommended to use "registry.k8s.io/pause:3.10" as the CRI sandbox image.
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [inst-5c3dw-san-jose-dev-a10-hypervisors-pool kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.254.192.1 10.254.192.244]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [inst-5c3dw-san-jose-dev-a10-hypervisors-pool localhost] and IPs [10.254.192.244 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [inst-5c3dw-san-jose-dev-a10-hypervisors-pool localhost] and IPs [10.254.192.244 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "super-admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests"
[kubelet-check] Waiting for a healthy kubelet at http://127.0.0.1:10248/healthz. This can take up to 4m0s
[kubelet-check] The kubelet is healthy after 501.697456ms
[control-plane-check] Waiting for healthy control plane components. This can take up to 4m0s
[control-plane-check] Checking kube-apiserver at https://10.254.192.244:6443/livez
[control-plane-check] Checking kube-controller-manager at https://127.0.0.1:10257/healthz
[control-plane-check] Checking kube-scheduler at https://127.0.0.1:10259/livez
[control-plane-check] kube-controller-manager is healthy after 1.503343452s
[control-plane-check] kube-scheduler is healthy after 2.132928007s
[control-plane-check] kube-apiserver is healthy after 3.501665962s
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node inst-5c3dw-san-jose-dev-a10-hypervisors-pool as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node inst-5c3dw-san-jose-dev-a10-hypervisors-pool as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: hw4taj.tacc97bn9dm2rdhz
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
^[[C[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:
kubeadm join 10.254.192.244:6443 --token hw4taj.tacc97bn9dm2rdhz \
--discovery-token-ca-cert-hash sha256:d9d4815435bb0ca3b618d79a829546884a604345101833f63a03e676754edc30 \
--control-plane
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 10.254.192.244:6443 --token hw4taj.tacc97bn9dm2rdhz \
--discovery-token-ca-cert-hash sha256:d9d4815435bb0ca3b618d79a829546884a604345101833f63a03e676754edc30
Check kubelet.service¶
It appears it's not able to contact the API server (which is supposed to run on the same node):
Text Only
E0730 21:01:10.126250 11574 kubelet_node_status.go:548] "Error updating node status, will retry" err="error getting node \"inst-5c3dw-san-jose-dev-a10-hypervisors-pool\": Get \"https://10.254.192.244:6443/api/v1/nodes/inst-5c3dw-san-jose-dev-a10-hypervisors-pool?timeout=10s\": dial tcp 10.254.192.244:6443: connect: conn>
We can use a tool called crictl that is a runtime-agnostic replacement for docker ps, docker logs etc, but designed specifically for Kubernetes.(1)
- Why does it exist? Kubernetes doesn’t require Docker anymore — it talks to the container runtime via a standardized API called CRI. Different runtimes implement this (e.g., containerd, CRI-O, Mirantis cri-dockerd). crictl provides a consistent way to inspect and debug containers and pods regardless of which runtime is in use.
What is the apiserver doing?
Text Only
# crictl ps -a |& grep apiserver
fd00ab5bd2e19 a92b4b92a9916 2 minutes ago Exited kube-apiserver 19 175c92b5831d6 kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
It's not running, we check the logs:
Text Only
# crictl logs fd00ab5bd2e19
WARN[0000] Config "/etc/crictl.yaml" does not exist, trying next: "/usr/bin/crictl.yaml"
WARN[0000] runtime connect using default endpoints: [unix:///run/containerd/containerd.sock unix:///run/crio/crio.sock unix:///var/run/cri-dockerd.sock]. As the default settings are now deprecated, you should set the endpoint instead.
I0730 21:01:10.607488 1 options.go:249] external host was not specified, using 10.254.192.244
I0730 21:01:10.609025 1 server.go:147] Version: v1.33.3
I0730 21:01:10.609042 1 server.go:149] "Golang settings" GOGC="" GOMAXPROCS="" GOTRACEBACK=""
W0730 21:01:10.999479 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:10.999566 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
I0730 21:01:11.000358 1 shared_informer.go:350] "Waiting for caches to sync" controller="node_authorizer"
I0730 21:01:11.006018 1 shared_informer.go:350] "Waiting for caches to sync" controller="*generic.policySource[*k8s.io/api/admissionregistration/v1.ValidatingAdmissionPolicy,*k8s.io/api/admissionregistration/v1.ValidatingAdmissionPolicyBinding,k8s.io/apiserver/pkg/admission/plugin/policy/validating.Validator]"
I0730 21:01:11.011647 1 plugins.go:157] Loaded 14 mutating admission controller(s) successfully in the following order: NamespaceLifecycle,LimitRanger,ServiceAccount,NodeRestriction,TaintNodesByCondition,Priority,DefaultTolerationSeconds,DefaultStorageClass,StorageObjectInUseProtection,RuntimeClass,DefaultIngressClass,PodTopologyLabels,MutatingAdmissionPolicy,MutatingAdmissionWebhook.
I0730 21:01:11.011668 1 plugins.go:160] Loaded 13 validating admission controller(s) successfully in the following order: LimitRanger,ServiceAccount,PodSecurity,Priority,PersistentVolumeClaimResize,RuntimeClass,CertificateApproval,CertificateSigning,ClusterTrustBundleAttest,CertificateSubjectRestriction,ValidatingAdmissionPolicy,ValidatingAdmissionWebhook,ResourceQuota.
I0730 21:01:11.011770 1 instance.go:233] Using reconciler: lease
W0730 21:01:11.012277 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:12.000165 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:12.000275 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:12.013075 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:13.490656 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:13.621854 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:13.827507 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:15.879253 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:16.391114 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:16.629331 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:19.947000 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:20.334115 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:20.969026 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:26.938075 1 logging.go:55] [core] [Channel #5 SubChannel #6]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:27.059469 1 logging.go:55] [core] [Channel #1 SubChannel #4]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
W0730 21:01:27.645963 1 logging.go:55] [core] [Channel #2 SubChannel #3]grpc: addrConn.createTransport failed to connect to {Addr: "127.0.0.1:2379", ServerName: "127.0.0.1:2379", }. Err: connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:2379: connect: connection refused"
F0730 21:01:31.013150 1 instance.go:226] Error creating leases: error creating storage factory: context deadline exceeded
Port 2379 is the client API port for etcd, so let's see what's wrong there.
Text Only
# crictl ps -a |& grep etcd
8d6f6ec0c1da2 499038711c081 3 minutes ago Exited etcd 16 c9a80c0d59849 etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
# crictl logs [...]
{"level":"info","ts":"2025-07-30T21:02:07.516400Z","caller":"osutil/interrupt_unix.go:64","msg":"received signal; shutting down","signal":"terminated"}
Incorrect containerd cgroup v2 configuration¶
It was shutdown by something. On further investigation, I found this Github issue that suggests the containerd runtime is not using cgroups driver approrpiately. We change our config file:
/etc/containerd/config.toml
version = 2
[plugins]
[plugins."io.containerd.grpc.v1.cri"]
[plugins."io.containerd.grpc.v1.cri".containerd]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
runtime_type = "io.containerd.runc.v2"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
SystemdCgroup = true
We restart containerd.service and kubelet.service. Things seem to be running now!
Text Only
# crictl ps -a
WARN[0000] Config "/etc/crictl.yaml" does not exist, trying next: "/usr/bin/crictl.yaml"
WARN[0000] runtime connect using default endpoints: [unix:///run/containerd/containerd.sock unix:///run/crio/crio.sock unix:///var/run/cri-dockerd.sock]. As the default settings are now deprecated, you should set the endpoint instead.
WARN[0000] Image connect using default endpoints: [unix:///run/containerd/containerd.sock unix:///run/crio/crio.sock unix:///var/run/cri-dockerd.sock]. As the default settings are now deprecated, you should set the endpoint instead.
CONTAINER IMAGE CREATED STATE NAME ATTEMPT POD ID POD NAMESPACE
fc06e383ddd14 af855adae7960 14 seconds ago Running kube-proxy 23 33c1780f1d81a kube-proxy-sn66m kube-system
2511a21164725 a92b4b92a9916 17 seconds ago Running kube-apiserver 25 0fa0394d6af4e kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
238b3d008fe83 499038711c081 17 seconds ago Running etcd 10 d9b0fbe4ff979 etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
6579f945aa549 bf97fadcef430 17 seconds ago Running kube-controller-manager 28 671c5bd069518 kube-controller-manager-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
558e9c0399021 41376797d5122 17 seconds ago Running kube-scheduler 25 a312b6a729349 kube-scheduler-inst-5c3dw-san-jose-dev-a10-hypervisors-pool kube-system
We can check that kubectl indeed sees the system pods:
Text Only
# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-674b8bbfcf-k5jwk 0/1 Pending 0 117m
coredns-674b8bbfcf-v29ns 0/1 Pending 0 117m
etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 10 (2m45s ago) 2m33s
kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 25 (6m25s ago) 117m
kube-controller-manager-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 28 (4m33s ago) 117m
kube-proxy-sn66m 1/1 Running 23 (3m14s ago) 117m
kube-scheduler-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 25 (2m44s ago) 117m
However, coredns is not running. Why?
Text Only
Warning FailedScheduling 120m default-scheduler 0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
This is telling us that the node itself is not ready. We can confirm that by looking at the node:
Text Only
# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
inst-5c3dw-san-jose-dev-a10-hypervisors-pool NotReady control-plane 125m v1.33.3 10.254.192.244 <none> Ubuntu 20.04.3 LTS 5.14.15-custom containerd://1.7.20
The kubelet says this:
Text Only
E0730 21:44:40.048656 69503 kubelet.go:3117] "Container runtime network not ready" networkReady="NetworkReady=false reason:NetworkPluginNotReady message:Network plugin returns error: cni plugin not initialized"
We haven't initialized a network plugin. For that, we'll use Cilium.
Create the CNI Network Plugin¶
In a multi-tenancy environment, the question becomes: how do you isolate each tenancy from each other? For the network, there are two general paths we could take:
- Use a fully-blown fabric-level SDN like OVN. This is useful if you want each tenancy to have full VRF capabilities, for example in clouds that provide VPNs. Such a system would allow customers to not only have their own isolated tenancy, but it would allow them to customize their VPN so that multiple resources can live inside of the same network overlay. OVN is incredibly complex, howevever, and often requires expert network engineers to deploy and manage.
- Use an eBPF tool that enforces network policies on the host level. The traffic traversing such a system would rely upon a network fabric that does not by itself separate tenancies into separate VRFs and VLANs, but strong tenancy isolation can still be achieved through end-to-end traffic encryption between the pods in a k8s network. This is generally a simpler approach to take because it does not require an SDN that can manage VRFs on switches. You do not need to manage VLANs, it does not have infrastructural dependencies on switches, it has built-in encryption and observability, and such eBPF tools like the k8s-native Cilium project are by definition k8s-native and can be managed by the k8s control plane as first-class citizens.
We'll use Cilium for this.
What is Cilium?
Cilium is an open source project to provide networking, security, and observability for cloud native environments such as Kubernetes clusters and other container orchestration platforms.
At the foundation of Cilium is a new Linux kernel technology called eBPF, which enables the dynamic insertion of powerful security, visibility, and networking control logic into the Linux kernel. eBPF is used to provide high-performance networking, multi-cluster and multi-cloud capabilities, advanced load balancing, transparent encryption, extensive network security capabilities, transparent observability, and much more.
Install the Cilium CLI¶
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt)
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# CLI_ARCH=amd64
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 56.6M 100 56.6M 0 0 43.5M 0 0:00:01 0:00:01 --:--:-- 54.9M
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 92 100 92 0 0 412 0 --:--:-- --:--:-- --:--:-- 412
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# sha256sum --check cilium-linux-${CLI_ARCH}.tar.gz.sha256sum
cilium-linux-amd64.tar.gz: OK
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# sudo tar xzvfC cilium-linux-${CLI_ARCH}.tar.gz /usr/local/bin
cilium
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# rm cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu#
Install Cilium¶
https://docs.cilium.io/en/stable/gettingstarted/k8s-install-default/#create-the-cluster
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl config get-contexts
CURRENT NAME CLUSTER AUTHINFO NAMESPACE
* kubernetes-admin@kubernetes kubernetes kubernetes-admin
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cilium install --version 1.18.0
ℹ️ Using Cilium version 1.18.0
🔮 Auto-detected cluster name: kubernetes
🔮 Auto-detected kube-proxy has been installed
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cilium status
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: OK
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: disabled
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 1, Ready: 1/1, Available: 1/1
DaemonSet cilium-envoy Desired: 1, Ready: 1/1, Available: 1/1
Deployment cilium-operator Desired: 1, Ready: 1/1, Available: 1/1
Containers: cilium Running: 1
cilium-envoy Running: 1
cilium-operator Running: 1
clustermesh-apiserver
hubble-relay
Cluster Pods: 2/2 managed by Cilium
Helm chart version: 1.18.0
Image versions cilium quay.io/cilium/cilium:v1.18.0@sha256:dfea023972d06ec183cfa3c9e7809716f85daaff042e573ef366e9ec6a0c0ab2: 1
cilium-envoy quay.io/cilium/cilium-envoy:v1.34.4-1753677767-266d5a01d1d55bd1d60148f991b98dac0390d363@sha256:231b5bd9682dfc648ae97f33dcdc5225c5a526194dda08124f5eded833bf02bf: 1
cilium-operator quay.io/cilium/operator-generic:v1.18.0@sha256:398378b4507b6e9db22be2f4455d8f8e509b189470061b0f813f0fabaf944f51: 1
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu#
We can run the provided Cilium connectivity test:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cilium connectivity test
ℹ️ Monitor aggregation detected, will skip some flow validation steps ✨ [kubernetes] Creating namespace cilium-test-1 for connectivity check...
✨ [kubernetes] Deploying echo-same-node service...
✨ [kubernetes] Deploying DNS test server configmap...
✨ [kubernetes] Deploying same-node deployment...
✨ [kubernetes] Deploying client deployment...
✨ [kubernetes] Deploying client2 deployment...
⌛ [kubernetes] Waiting for deployment cilium-test-1/client to become ready...
⌛ [kubernetes] Waiting for deployment cilium-test-1/client2 to become ready...
⌛ [kubernetes] Waiting for deployment cilium-test-1/echo-same-node to become ready...
⌛ [kubernetes] Waiting for pod cilium-test-1/client-645b68dcf7-xjr6c to reach DNS server on cilium-test-1/echo-same-node-5f44c8d48c-k5rqm pod...
⌛ [kubernetes] Waiting for pod cilium-test-1/client2-66475877c6-gj74x to reach DNS server on cilium-test-1/echo-same-node-5f44c8d48c-k5rqm pod...
⌛ [kubernetes] Waiting for pod cilium-test-1/client-645b68dcf7-xjr6c to reach default/kubernetes service...
⌛ [kubernetes] Waiting for pod cilium-test-1/client2-66475877c6-gj74x to reach default/kubernetes service...
⌛ [kubernetes] Waiting for Service cilium-test-1/echo-same-node to become ready...
⌛ [kubernetes] Waiting for Service cilium-test-1/echo-same-node to be synchronized by Cilium pod kube-system/cilium-mt9xp
⌛ [kubernetes] Waiting for NodePort 10.254.192.244:32475 (cilium-test-1/echo-same-node) to become ready...
⌛ [kubernetes] Waiting for NodePort 10.254.192.244:32475 (cilium-test-1/echo-same-node) to become ready...
[...]
[=] [cilium-test-1] Test [check-log-errors] [123/123]
.....
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (config)]
[-] Scenario [check-log-errors/no-errors-in-logs]
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-envoy-jvbms (cilium-envoy)]
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (mount-bpf-fs)]
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (clean-cilium-state)]
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (install-cni-binaries)]
[.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (cilium-agent)]
❌ Found 1 logs in kubernetes/kube-system/cilium-mt9xp (cilium-agent) matching list of errors that must be investigated:
time=2025-07-31T18:11:30.753850455Z level=error msg="cannot read proc file" module=agent.controlplane.l7-proxy file-path=/proc/net/udp6 error="open /proc/net/udp6: no such file or directory" (8 occurrences)
. [.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (mount-cgroup)]
. [.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (apply-sysctl-overwrites)]
. [.] Action [check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-operator-64ddb69dfd-ndzbc (cilium-operator)]
.
📋 Test Report [cilium-test-1]
❌ 1/74 tests failed (1/293 actions), 49 tests skipped, 1 scenarios skipped:
Test [check-log-errors]:
🟥 check-log-errors/no-errors-in-logs:kubernetes/kube-system/cilium-mt9xp (cilium-agent): Found 1 logs in kubernetes/kube-system/cilium-mt9xp (cilium-agent) matching list of errors that must be investigated:
time=2025-07-31T18:11:30.753850455Z level=error msg="cannot read proc file" module=agent.controlplane.l7-proxy file-path=/proc/net/udp6 error="open /proc/net/udp6: no such file or directory" (8 occurrences)
[cilium-test-1] 1 tests failed
Most of the tests passed except for one. The log message indicates that cilium was attempting to find the IPv6 UDP psuedo-file. Upon investigation, this appears to be a file that the kernel exposes that allows processes to inspect all active IPv6 UDP sockets. For example we can try reading the regular /proc/net/udp file:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cat /proc/net/udp
sl local_address rem_address st tx_queue rx_queue tr tm->when retrnsmt uid timeout inode ref pointer drops
3909: 3500007F:0035 00000000:0000 07 00000000:00000000 00:00000000 00000000 101 0 125020 2 ffff93191c9d6300 0
3924: F4C0FE0A:0044 00000000:0000 07 00000000:00000000 00:00000000 00000000 100 0 1089789 2 ffff9398b6d4de80 0
3967: 00000000:006F 00000000:0000 07 00000000:00000000 00:00000000 00000000 0 0 147480 2 ffff9398d9d78000 0
4179: 0100007F:0143 00000000:0000 07 00000000:00000000 00:00000000 00000000 0 0 49261 2 ffff9319799b1200 0
12328: 00000000:2118 00000000:0000 07 00000000:00000000 00:00000000 00000000 0 0 2139786 2 ffff9398f80f7500 0
50191: 0100007F:B4FF 00000000:0000 07 00000000:00000000 00:00000000 00000000 0 0 2172164 2 ffff9399caa11b00 0
51407: 0100007F:B9BF 0100007F:0143 01 00000000:00000000 00:00000000 00000000 0 0 53410 2 ffff9319d6a70000 0
When we look at the kernel's dmesg logs, we see it explicitly states that ipv6 has been administratively disabled:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# dmesg | grep -i ipv6
[ 0.000000] Command line: BOOT_IMAGE=/boot/vmlinuz-5.14.15-custom root=UUID=3603dbb9-70be-449b-b3ba-5cad4dc8c67f ro systemd.unified_cgroup_hierarchy=1 cgroup_no_v1=all rd.driver.pre=vfio-pci video=efifb:off vga=normal nofb nomodeset usbcore.nousb hugepagesz=1G default_hugepagesz=1G transparent_hugepage=never ipv6.disable=1 console=tty1 console=ttyS0 intel_iommu=on hugepages=906
[ 1.880268] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-5.14.15-custom root=UUID=3603dbb9-70be-449b-b3ba-5cad4dc8c67f ro systemd.unified_cgroup_hierarchy=1 cgroup_no_v1=all rd.driver.pre=vfio-pci video=efifb:off vga=normal nofb nomodeset usbcore.nousb hugepagesz=1G default_hugepagesz=1G transparent_hugepage=never ipv6.disable=1 console=tty1 console=ttyS0 intel_iommu=on hugepages=906
[ 147.786693] IPv6: Loaded, but administratively disabled, reboot required to enable
[ 167.393552] systemd[1]: Binding to IPv6 address not available since kernel does not support IPv6.
[ 167.499789] systemd[1]: Binding to IPv6 address not available since kernel does not support IPv6.
We do indeed see it was disabled from the kernel commandline:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cat /proc/cmdline
BOOT_IMAGE=/boot/vmlinuz-5.14.15-custom root=UUID=3603dbb9-70be-449b-b3ba-5cad4dc8c67f ro systemd.unified_cgroup_hierarchy=1 cgroup_no_v1=all rd.driver.pre=vfio-pci video=efifb:off vga=normal nofb nomodeset usbcore.nousb hugepagesz=1G default_hugepagesz=1G transparent_hugepage=never ipv6.disable=1 console=tty1 console=ttyS0 intel_iommu=on hugepages=906
No matter, this is just an experiment so there is no need for IPv6.
We check the node health and see that it's marked as Ready:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
inst-5c3dw-san-jose-dev-a10-hypervisors-pool Ready control-plane 22h v1.33.3 10.254.192.244 <none> Ubuntu 20.04.3 LTS 5.14.15-custom containerd://1.7.20
We also see that CoreDNS is working, in addition to the newly created cilium pods:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
cilium-envoy-jvbms 1/1 Running 0 17m
cilium-mt9xp 1/1 Running 0 17m
cilium-operator-64ddb69dfd-ndzbc 1/1 Running 0 17m
coredns-674b8bbfcf-k5jwk 1/1 Running 0 22h
coredns-674b8bbfcf-v29ns 1/1 Running 0 22h
etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 10 (20h ago) 20h
kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 25 (20h ago) 22h
kube-controller-manager-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 28 (20h ago) 22h
kube-proxy-sn66m 1/1 Running 23 (20h ago) 22h
kube-scheduler-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 25 (20h ago) 22h
That sounds like a success!
Test a simple ML job¶
Our k8s cluster is nowhere near the state where we need it to be, it it should allow us to do some basic ML jobs.(1) Some of the critical pieces we haven't yet implemented are:
- Virtualized running environments. The containers shouldn't use the host kernel, they should use their own isolated VM.
- Isolated network overlay via cilium.
- Observability platform.
- GPU PCIe passthrough to the VMs.
- Actually, I'm expecting the containers to not have any access to the GPU devices as we haven't explicitly configured it to do so, but we'll see what happens anyway.
We create a k8s deployment file for a convolutional neural network that identifies handwritten digits from the MNIST dataset. I've uploaded this to dockerhub at landontclipp/serverless-test. We just need to run a deployment of this and see what happens.
deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: serverless-test-deployment
namespace: default
spec:
replicas: 1
selector:
matchLabels:
app: serverless-test
template:
metadata:
labels:
app: serverless-test
spec:
containers:
- name: serverless-test
image: landontclipp/serverless-test:v1.0.5
imagePullPolicy: Always
command: ["python3", "-u", "mnist_image_classifier.py"]
restartPolicy: Always
And then apply it
We see k8s is deploying the pod:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl get pods
NAME READY STATUS RESTARTS AGE
serverless-test-deployment-6c7657c859-66pn6 0/1 ContainerCreating 0 5s
The container eventually fails (not suprisingly):
Text Only
Warning BackOff 11s kubelet Back-off restarting failed container serverless-test in pod serverless-test-deployment-6c7657c859-66pn6_default(b50a7fa8-bb90-46f1-aba4-f17a2bb67161)
It appears there is some application-level issue:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl logs serverless-test-deployment-56bcd9f69-f4crw
font_manager.py :1639 2025-07-31 21:51:45,306 generated new fontManager
starting data loader
train_loader begin
100%|██████████| 9.91M/9.91M [00:01<00:00, 6.56MB/s]
100%|██████████| 28.9k/28.9k [00:00<00:00, 432kB/s]
100%|██████████| 1.65M/1.65M [00:00<00:00, 3.00MB/s]
100%|██████████| 4.54k/4.54k [00:00<00:00, 7.64MB/s]
train_loader end
test_loader begin
test_loader end
Using device: cpu
//mnist_image_classifier.py:49: UserWarning: Implicit dimension choice for log_softmax has been deprecated. Change the call to include dim=X as an argument.
return F.log_softmax(x)
/opt/conda/lib/python3.11/site-packages/torch/nn/_reduction.py:51: UserWarning: size_average and reduce args will be deprecated, please use reduction='sum' instead.
warnings.warn(warning.format(ret))
Test set: Avg. loss: 2.3316, Accuracy: 1137/10000 (11%)
starting training epoch 1
Train Epoch: 1 [0/60000 (0%)] Loss: 2.375533
Traceback (most recent call last):
File "//mnist_image_classifier.py", line 175, in <module>
classifier()
File "//mnist_image_classifier.py", line 169, in classifier
train(epoch)
File "//mnist_image_classifier.py", line 140, in train
torch.save(network.state_dict(), f"{RESULTS_DIR}/model.pth")
File "/opt/conda/lib/python3.11/site-packages/torch/serialization.py", line 964, in save
with _open_zipfile_writer(f) as opened_zipfile:
^^^^^^^^^^^^^^^^^^^^^^^
File "/opt/conda/lib/python3.11/site-packages/torch/serialization.py", line 828, in _open_zipfile_writer
return container(name_or_buffer)
^^^^^^^^^^^^^^^^^^^^^^^^^
File "/opt/conda/lib/python3.11/site-packages/torch/serialization.py", line 792, in __init__
torch._C.PyTorchFileWriter(
RuntimeError: Parent directory /runpod-volume/ does not exist.
This is my fault actually. This image was originally meant to run in the runpod.io environment. I just need to modify it a little bit to not expect this volume to exist (and I'm not sure it actually needed it anyway).
I make a minor change and also change the deployment to be able to write its model output to /output which we will create as a k8s persistent volume.
deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: serverless-test-deployment
namespace: default
spec:
replicas: 1
selector:
matchLabels:
app: serverless-test
template:
metadata:
labels:
app: serverless-test
spec:
containers:
- name: serverless-test
image: landontclipp/serverless-test:v1.0.6
imagePullPolicy: Always
command: ["python3", "-u", "mnist_image_classifier.py"]
volumeMounts:
- name: model-output
mountPath: /output
restartPolicy: Always
volumes:
- name: model-output
persistentVolumeClaim:
claimName: model-output
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl apply -f deployment.yaml
deployment.apps/serverless-test-deployment configured
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl apply -f persistentvolumeclaim.yaml
persistentvolumeclaim/model-output created
The pods are stuck in pending state because of this error in the persistentstorageclaim:
Text Only
Normal FailedBinding 13s (x26 over 6m26s) persistentvolume-controller no persistent volumes available for this claim and no storage class is set
We didn't specify an actual persistentvolume for this claim, whoops. I make a directory on the host at /data and tell k8s about this:
persistentvolume.yaml
apiVersion: v1
kind: PersistentVolume
metadata:
name: model-output-pv
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
hostPath:
path: /data/model-output-pv
Note
This is an interesting segue to explore how we could attach an NFS storage provider for our CaaS service. For now we'll just use on-disk local filesystems. It would be interesting to support an S3 storage class so that containers could mount something like s3fs to their s3 bucket.
After we apply that, the ML job is finally running!
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl logs serverless-test-deployment-56564b8c9b-h44lx | tail -n 20
Train Epoch: 1 [49280/60000 (82%)] Loss: 0.855628
Train Epoch: 1 [49920/60000 (83%)] Loss: 0.460283
Train Epoch: 1 [50560/60000 (84%)] Loss: 0.428732
Train Epoch: 1 [51200/60000 (85%)] Loss: 0.789118
Train Epoch: 1 [51840/60000 (86%)] Loss: 0.559741
Train Epoch: 1 [52480/60000 (87%)] Loss: 0.579006
Train Epoch: 1 [53120/60000 (88%)] Loss: 0.531399
Train Epoch: 1 [53760/60000 (90%)] Loss: 0.441080
Train Epoch: 1 [54400/60000 (91%)] Loss: 0.308792
Train Epoch: 1 [55040/60000 (92%)] Loss: 0.508296
Train Epoch: 1 [55680/60000 (93%)] Loss: 0.662792
Train Epoch: 1 [56320/60000 (94%)] Loss: 0.566424
Train Epoch: 1 [56960/60000 (95%)] Loss: 0.376733
Train Epoch: 1 [57600/60000 (96%)] Loss: 0.437733
Train Epoch: 1 [58240/60000 (97%)] Loss: 0.469119
Train Epoch: 1 [58880/60000 (98%)] Loss: 0.629886
Train Epoch: 1 [59520/60000 (99%)] Loss: 0.352319
Test set: Avg. loss: 0.2009, Accuracy: 9394/10000 (94%)
We can also see the model weights written to the host:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# ls -lah /data/model-output-pv/
total 192K
drwxr-xr-x 2 root root 4.0K Jul 31 22:16 .
drwxr-xr-x 3 root root 4.0K Jul 31 22:15 ..
-rw-r--r-- 1 root root 89K Jul 31 22:20 model.pth
-rw-r--r-- 1 root root 89K Jul 31 22:20 optimizer.pth
Deploy Kata Containers¶
https://dev.to/kikifachry/deploy-kata-containers-in-ubuntu-2404-17le
The k8s cluster as it is uses a vanilla container runtime whereby the containers use the host kernel. In a multi-tenant environment, the host kernel cannot be directly used by the containers, so we must provide them with their own virtualized kernel. Or in other words, run the containers in a virtual machine.
The current architecture looks roughly like this:
flowchart TD
subgraph Host
user
APIServer[k8s API Server]
Scheduler[k8s Scheduler]
kubelet.service
containerd.service
runc
container[container process]
user -- deployment.yaml --> APIServer
Scheduler -- sees deployment.yaml--> APIServer
Scheduler -- schedules pod on kubelet.service --> APIServer
kubelet.service -- observes requested pod --> APIServer
kubelet.service -- requests container start (CRI gRPC)--> containerd.service
containerd.service -- start container (OCI Runtime Spec) --> runc
runc -- creates --> container
endAs you can see on the diagram, the container is a process managed directly by the host kernel. We want to swap in the runc binary (which implements the OCI runtime spec) with the Kata containers shim:
flowchart TD
subgraph Host
user
APIServer[k8s API Server]
Scheduler[k8s Scheduler]
kubelet.service
containerd.service
kata
cloudHypervisor[Cloud Hypervisor]
containerd-shim-kata-v2
user -- deployment.yaml --> APIServer
Scheduler -- sees deployment.yaml--> APIServer
Scheduler -- schedules pod on kubelet.service --> APIServer
kubelet.service -- observes requested pod --> APIServer
kubelet.service -- requests container start (CRI gRPC)--> containerd.service
containerd.service -- start container (OCI Runtime Spec) --> kata
kata -- request new VM --> cloudHypervisor
cloudHypervisor -- creates --> VM
containerd.service --> containerd-shim-kata-v2 -- AF_VSOCK --> kataAgent
subgraph VM
kataAgent[kata agent]
container[container process]
kataAgent -- creates --> container
end
endInstall¶
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# ./kata-manager.sh
INFO: Checking dependencies
INFO: Running pre-checks
ERROR: containerd already installed
We need to stop and remove containerd:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# systemctl stop containerd
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# apt remove --purge containerd.io
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following packages were automatically installed and are no longer required:
docker-ce-rootless-extras golang-1.13 golang-1.13-doc golang-1.13-go golang-1.13-race-detector-runtime golang-1.13-src golang-doc golang-go golang-race-detector-runtime golang-src libxen-dev slirp4netns
Use 'sudo apt autoremove' to remove them.
The following packages will be REMOVED:
containerd.io docker-ce
0 upgraded, 0 newly installed, 2 to remove and 289 not upgraded.
After this operation, 230 MB disk space will be freed.
Do you want to continue? [Y/n] y
(Reading database ... 111594 files and directories currently installed.)
Removing docker-ce (5:27.1.2-1~ubuntu.20.04~focal) ...
Removing containerd.io (1.7.20-1) ...
Processing triggers for man-db (2.9.1-1) ...
The installation now proceeds as normal:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# ./kata-manager.sh
INFO: Checking dependencies
INFO: Running pre-checks
INFO: Downloading Kata Containers release (latest version)
[...]
It fails with outdated glibc libraries:
Text Only
INFO: Using default Kata Containers configuration
kata-runtime: /lib/x86_64-linux-gnu/libc.so.6: version `GLIBC_2.34' not found (required by kata-runtime)
kata-runtime: /lib/x86_64-linux-gnu/libc.so.6: version `GLIBC_2.32' not found (required by kata-runtime)
Update libc6
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# sudo apt update
Hit:1 https://apt.releases.hashicorp.com focal InRelease
Hit:2 https://prod-cdn.packages.k8s.io/repositories/isv:/kubernetes:/core:/stable:/v1.33/deb InRelease
Hit:3 https://10.254.192.232/artifactory/lambda-custom focal InRelease
Hit:4 http://security.ubuntu.com/ubuntu focal-security InRelease
Hit:5 https://10.254.192.232/artifactory/lambda-host-packagelock focal InRelease
Hit:6 https://10.254.192.232/artifactory/lambda-infra focal InRelease
Hit:7 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal InRelease
Hit:8 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-updates InRelease
Hit:9 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-backports InRelease
Reading package lists... Done
Building dependency tree
Reading state information... Done
289 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# sudo apt install libc6
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following packages were automatically installed and are no longer required:
docker-ce-rootless-extras golang-1.13 golang-1.13-doc golang-1.13-go golang-1.13-race-detector-runtime golang-1.13-src golang-doc golang-go golang-race-detector-runtime golang-src libxen-dev slirp4netns
Use 'sudo apt autoremove' to remove them.
The following additional packages will be installed:
libc-dev-bin libc6-dev
Suggested packages:
glibc-doc manpages-dev
Recommended packages:
manpages manpages-dev
The following packages will be upgraded:
libc-dev-bin libc6 libc6-dev
3 upgraded, 0 newly installed, 0 to remove and 286 not upgraded.
Need to get 5312 kB of archives.
After this operation, 0 B of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-updates/main amd64 libc6-dev amd64 2.31-0ubuntu9.18 [2520 kB]
Get:2 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-updates/main amd64 libc-dev-bin amd64 2.31-0ubuntu9.18 [71.7 kB]
Get:3 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-updates/main amd64 libc6 amd64 2.31-0ubuntu9.18 [2720 kB]
Fetched 5312 kB in 1s (4451 kB/s)
Preconfiguring packages ...
(Reading database ... 111569 files and directories currently installed.)
Preparing to unpack .../libc6-dev_2.31-0ubuntu9.18_amd64.deb ...
Unpacking libc6-dev:amd64 (2.31-0ubuntu9.18) over (2.31-0ubuntu9.16) ...
Preparing to unpack .../libc-dev-bin_2.31-0ubuntu9.18_amd64.deb ...
Unpacking libc-dev-bin (2.31-0ubuntu9.18) over (2.31-0ubuntu9.16) ...
Preparing to unpack .../libc6_2.31-0ubuntu9.18_amd64.deb ...
Unpacking libc6:amd64 (2.31-0ubuntu9.18) over (2.31-0ubuntu9.16) ...
Setting up libc6:amd64 (2.31-0ubuntu9.18) ...
Setting up libc-dev-bin (2.31-0ubuntu9.18) ...
Setting up libc6-dev:amd64 (2.31-0ubuntu9.18) ...
Processing triggers for man-db (2.9.1-1) ...
Processing triggers for libc-bin (2.31-0ubuntu9.2) ...
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata#
Outdated Ubuntu (20.04.3)¶
Ah, it seems my distro of Ubuntu (20.04.3 LTS (Focal Fossa)) simply doesn't have the glibc version I need. We need to update the whole OS. This update will be annoying because do-release-upgrade requires all packages to be upgraded. So we must do that...
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# do-release-upgrade
Checking for a new Ubuntu release
Please install all available updates for your release before upgrading.
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# apt update
Hit:1 https://apt.releases.hashicorp.com focal InRelease
Hit:2 https://10.254.192.232/artifactory/lambda-custom focal InRelease
Hit:3 https://10.254.192.232/artifactory/lambda-host-packagelock focal InRelease
Hit:4 https://10.254.192.232/artifactory/lambda-infra focal InRelease
Hit:5 http://security.ubuntu.com/ubuntu focal-security InRelease
Hit:6 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal InRelease
Hit:8 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-updates InRelease
Hit:9 http://us-sanjose-1-ad-1.clouds.archive.ubuntu.com/ubuntu focal-backports InRelease
Hit:7 https://prod-cdn.packages.k8s.io/repositories/isv:/kubernetes:/core:/stable:/v1.33/deb InRelease
Reading package lists... Done
Building dependency tree
Reading state information... Done
286 packages can be upgraded. Run 'apt list --upgradable' to see them.
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# apt upgrade -y
Reading package lists... Done
Building dependency tree
Reading state information... Done
Calculating upgrade... Done
We now need to reboot the host before trying the distro upgrade again. This is an involved process and takes quite a while, so be sure to follow the system prompts and let it do its thing. We now see the kernel upgraded to Ubuntu Jammy.
We re-run the kata-manager.sh script and it seems to have succeeded:
Text Only
# 2025-08-01T21:20:07+00:00: Service installed for Kata Containers
INFO: Installed /etc/systemd/system/containerd.service
INFO: Created /etc/containerd/config.toml
INFO: Backed up containerd config file '/etc/containerd/config.toml' to '/etc/containerd/config.toml-pre-kata-2025-08-01'
# 2025-08-01T21:20:07+00:00: Added by kata-manager.sh
[plugins]
[plugins."io.containerd.grpc.v1.cri"]
[plugins."io.containerd.grpc.v1.cri".containerd]
default_runtime_name = "kata"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata]
runtime_type = "io.containerd.kata.v2"
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh]
runtime_type = "io.containerd.kata-clh.v2"
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
INFO: Modified containerd config file '/etc/containerd/config.toml'
Created symlink /etc/systemd/system/multi-user.target.wants/containerd.service → /etc/systemd/system/containerd.service.
INFO: Configured containerd (debug disabled)
containerd github.com/containerd/containerd v1.7.28 b98a3aace656320842a23f4a392a33f46af97866
INFO: Testing Kata Containers
WARN[0000] Not running network checks as super user arch=amd64 name=kata-runtime pid=6619 source=runtime
INFO[0000] CPU property found arch=amd64 description="Intel Architecture CPU" name=GenuineIntel pid=6619 source=runtime type=attribute
INFO[0000] CPU property found arch=amd64 description="Virtualization support" name=vmx pid=6619 source=runtime type=flag
INFO[0000] CPU property found arch=amd64 description="64Bit CPU" name=lm pid=6619 source=runtime type=flag
INFO[0000] CPU property found arch=amd64 description=SSE4.1 name=sse4_1 pid=6619 source=runtime type=flag
INFO[0000] kernel property found arch=amd64 description="Host Support for Linux VM Sockets" name=vhost_vsock pid=6619 source=runtime type=module
INFO[0000] kernel property found arch=amd64 description="Intel KVM" name=kvm_intel pid=6619 source=runtime type=module
INFO[0000] kernel property found arch=amd64 description="Kernel-based Virtual Machine" name=kvm pid=6619 source=runtime type=module
INFO[0000] kernel property found arch=amd64 description="Host kernel accelerator for virtio" name=vhost pid=6619 source=runtime type=module
INFO[0000] kernel property found arch=amd64 description="Host kernel accelerator for virtio network" name=vhost_net pid=6619 source=runtime type=module
System is capable of running Kata Containers
INFO[0000] device available arch=amd64 check-type=full device=/dev/kvm name=kata-runtime pid=6619 source=runtime
INFO[0000] feature available arch=amd64 check-type=full feature=create-vm name=kata-runtime pid=6619 source=runtime
System can currently create Kata Containers
quay.io/prometheus/busybox:latest: resolved |++++++++++++++++++++++++++++++++++++++|
index-sha256:dfa54ef35e438b9e71ac5549159074576b6382f95ce1a434088e05fd6b730bc4: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:f173c44fab35484fa0e940e42929efe2a2f506feda431ba72c5f0d79639d7f55: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:56a9b5a744a674481a5c034fec45ebf470a58ab844cd0da4d26b89bd27df5e36: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:1617e25568b2231fdd0d5caff63b06f6f7738d8d961f031c80e47d35aaec9733: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:9fa9226be034e47923c0457d916aa68474cdfb23af8d4525e9baeebc4760977a: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 1.2 s total: 768.4 (640.0 KiB/s)
unpacking linux/amd64 sha256:dfa54ef35e438b9e71ac5549159074576b6382f95ce1a434088e05fd6b730bc4...
done: 111.975443ms
INFO: Running "sudo ctr run --runtime io.containerd.kata.v2 --rm quay.io/prometheus/busybox:latest kata-manager-sh-test-kata uname -r"
INFO: Test successful:
INFO: Host kernel version : 5.14.15-custom
INFO: Container kernel version : 6.12.36
INFO: Kata Containers and containerd are now installed
WARNINGS:
- Use distro-packages where possible
If your distribution packages Kata Containers, you should use these packages rather
than running this script.
- Packages will **not** be automatically updated
Since a package manager is not being used, it is **your** responsibility
to ensure these packages are kept up-to-date when new versions are released
to ensure you are using a version that includes the latest security and bug fixes.
- Potentially untested versions or version combinations
This script installs the *newest* versions of Kata Containers
and containerd from binary release packages. These versions may
not have been tested with your distribution version.
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata#
These are the installed versions:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# ./kata-manager.sh -l
INFO: Getting version details
INFO: Kata Containers: installed version: Kata Containers containerd shim (Golang): id: "io.containerd.kata.v2", version: 3.19.1, commit: acae4480ac84701d7354e679714cc9d084b37f44
INFO: Kata Containers: latest version: 3.19.1
INFO: containerd: installed version: containerd github.com/containerd/containerd v1.7.28 b98a3aace656320842a23f4a392a33f46af97866
INFO: containerd: latest version: v2.1.4
INFO: Docker (moby): installed version: Docker version 27.1.2, build d01f264
INFO: Docker (moby): latest version: v28.3.3
Note on runc¶
Because our hypervisor is both a worker node and a control plane, we need to allow the CRI containers to work with both runc (for the control-plane containers that need to not run in a virtualized environment) and kata runtimes (for untrusted user workloads). When we installed kata, it wiped out the runc configuration probably because normal production installs don't mix runtimes. I manually added back runc and made it the default runtime:
/etc/containerd/config.toml
# 2025-08-01T21:20:07+00:00: Added by kata-manager.sh
[plugins]
[plugins."io.containerd.grpc.v1.cri"]
[plugins."io.containerd.grpc.v1.cri".containerd]
default_runtime_name = "runc"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
runtime_type = "io.containerd.runc.v2"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
BinaryName = "runc"
SystemdCgroup = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata]
runtime_type = "io.containerd.kata.v2"
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh]
runtime_type = "io.containerd.kata-clh.v2"
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
Note that kata containers will need to be run using the RuntimeClass parameter to specify they should run using the kata runtime.
Test with a simple container¶
We follow the linked blog post and pull down an image to test the new kata installation.
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# ctr image pull docker.io/rockylinux/rockylinux:latest
docker.io/rockylinux/rockylinux:latest: resolved |++++++++++++++++++++++++++++++++++++++|
index-sha256:fc370d748f4cd1e6ac3d1b6460fb82201897fa15a16f43e947940df5aca1a56e: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:2f0bf3347b762fb21264670b046758782673694883cdf031af3aba982f656830: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:523ffac7fb2e245e5e7c407b9f7377be9c6c3bf03d380981168311f49030da17: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:71cc2ddb2ecf0e2a974aec10b55487120f03759e86e08b50a7f4c5d77638ab9b: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 2.7 s total: 72.2 M (26.7 MiB/s)
unpacking linux/amd64 sha256:fc370d748f4cd1e6ac3d1b6460fb82201897fa15a16f43e947940df5aca1a56e...
done: 1.061369607s
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata#
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# uname -a
Linux inst-5c3dw-san-jose-dev-a10-hypervisors-pool 5.14.15-custom #1 SMP Thu Oct 28 11:32:42 PDT 2021 x86_64 x86_64 x86_64 GNU/Linux
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/kata# ctr run --runtime io.containerd.kata.v2 --rm docker.io/rockylinux/rockylinux:latest rocky-defaut uname -a
Linux f2c4f0c6b7fd 6.12.36 #1 SMP Sun Jul 20 19:15:21 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
What the above shows three separate things:
- The host kernel is at 5.14.15
- We try booting a container with the normal runc runtime (which remember is the non-virtualized container runtime) and we are completely blocked because
runcitself is not found. This is probably desirable for our experiment; it should be impossible to launch non-virtualized containers.(1) - When we explicitly launch in the kata runtime, we see the kernel version of
6.12.36is indeed different from the host, indicating a successful virtualized environment!
- Actually, it turns out you do need to retain the runc runtime, see the notes on runc above
Ensure kata uses cloud-hypervisor¶
I'm not sure what VMM it's using, so let's check. If you recall the notes on runc above, upon closer inspection we can see that the io.containerd.kata.v2 runtime points to /opt/kata/share/defaults/kata-containers/configuration.toml, which is actually a symlink to /opt/kata/share/defaults/kata-containers/configuration-qemu.toml. We want to change the config so that kata only supports cloud-hypervisor. Our config file now looks like:
/etc/containerd/config.toml
# 2025-08-01T21:20:07+00:00: Added by kata-manager.sh
[plugins]
[plugins."io.containerd.grpc.v1.cri"]
[plugins."io.containerd.grpc.v1.cri".containerd]
# Keep runc default for control plane
default_runtime_name = "runc"
# This applies to all privileged pods under CRI
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
runtime_type = "io.containerd.runc.v2"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
BinaryName = "runc"
SystemdCgroup = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata]
runtime_type = "io.containerd.kata.v2"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
We can confirm that the configuration-clh.toml file is indeed using kata-containers:
/opt/kata/share/defaults/kata-containers/configuration-clh.toml
[hypervisor.clh]
path = "/opt/kata/bin/cloud-hypervisor"
kernel = "/opt/kata/share/kata-containers/vmlinux.container"
image = "/opt/kata/share/kata-containers/kata-containers.img"
And as a final sanity check, we restart containerd/kubelet and confirm we can still launch a container:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# ctr run --rm --runtime io.containerd.kata.v2 docker.io/rockylinux/rockylinux:latest rocky-defaut uname -a
Linux f2c4f0c6b7fd 6.12.36 #1 SMP Sun Jul 20 19:15:21 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux
Overnight Problems¶
I came back to the cluster the next day and noticed all of the pods were crash looping. I traced it back to the kubelet repeatedly killing the etcd container after it complained of its "sandbox" differing from what was expected.(1) The kubelet importantly did not tell me why it thought the sandbox was in an incorrect state. I eventually ran across this blog post that seems to have found the answer. The short of it came down to the fact that containerd appears to have incorrectly handled the pod cgroups in a way that caused systemd to attempt to mess with the cgroup parameters outside of the knowledge of kubelet. Because systemd did this, the kubelet saw the cgroup was missing the cpuset controller and thus marked the "sandbox" as having changed, necessitating a pod restart.
- A sandbox in k8s terminology is the isolated environment that holds a pod's shared namespaces. It's set up by the container runtime when a pod is created, the runtime (containerd, CRI-O etc) launches a tiny, long-lived container called the pause container. That pause container (which you can actually download as a regular container image) creates and owns the pod's network namespace, IPC namespace, and the pod-level cgroup. All the other containers in the pod join that same sandbox instead of making their own. That's why containers in a pod can
localhosteach other and share linux resources.
While I cannot definitely prove that my situation was identical to the blog poster's, I did confirm some similar cgroup behavior. Namely, conatinerd was creating the pod cgroups here:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# ls -lahd /sys/fs/cgroup/system.slice/kubepods-burstable-pod*
drwxr-xr-x 2 root root 0 Aug 12 16:15 /sys/fs/cgroup/system.slice/kubepods-burstable-pod1cb906775da66a3175cc9b6ea7b90e13.slice:cri-containerd:2f4e6d27fffb44a10c04097efc7f7d19956113aab1a60747a6b891cadcb63140
drwxr-xr-x 2 root root 0 Aug 12 19:59 /sys/fs/cgroup/system.slice/kubepods-burstable-pod1cb906775da66a3175cc9b6ea7b90e13.slice:cri-containerd:e6a693352338f4beff0e718ff7ae26ab7c0f4bb750a5febde8503f0d6d909a6c
drwxr-xr-x 2 root root 0 Aug 12 16:17 /sys/fs/cgroup/system.slice/kubepods-burstable-pod97c9be78f8bf0c2388883fb88ac7d9af.slice:cri-containerd:b316a30419c71056948be64381b6029acc10a06ab916b2e830c5d256e523897a
drwxr-xr-x 2 root root 0 Aug 12 19:59 /sys/fs/cgroup/system.slice/kubepods-burstable-pod97c9be78f8bf0c2388883fb88ac7d9af.slice:cri-containerd:d5405e5cbd99b922d62ee3b03b8140ef9beb210e1613c5e3a14e478baf10c344
When it should have been creating them here:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# ls -lahd /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pod*
drwxr-xr-x 4 root root 0 Aug 12 19:59 /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pod0f1c3e848cb28fafbc6d3918f714b342.slice
drwxr-xr-x 2 root root 0 Aug 12 19:59 /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pod1cb906775da66a3175cc9b6ea7b90e13.slice
drwxr-xr-x 4 root root 0 Aug 12 19:59 /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pod5abc4736ba4b4bb5175fe72bb8343a42.slice
drwxr-xr-x 2 root root 0 Aug 12 19:59 /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-pod97c9be78f8bf0c2388883fb88ac7d9af.slice
drwxr-xr-x 4 root root 0 Aug 12 20:02 /sys/fs/cgroup/kubepods.slice/kubepods-burstable.slice/kubepods-burstable-podc8190eb4_633c_46c3_a30d_a6826069c23f.slice
My suspicion is that containerd was using the old cgroupfs driver, even though I had explicitly configured it to use the SystemdCgroup driver. I decided to upgrade containerd from my installed version to the latest:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# containerd --version
containerd github.com/containerd/containerd/v2 v2.1.3 c787fb98911740dd3ff2d0e45ce88cdf01410486
After doing this, the crash loops stopped:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# kubectl -n kube-system get pods
NAME READY STATUS RESTARTS AGE
cilium-9z6f7 1/1 Running 0 17m
cilium-envoy-2rb5j 1/1 Running 0 17m
cilium-operator-9b8b47cd8-g7bg6 1/1 Running 0 17m
etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 4 (21m ago) 4h8m
kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 9 (20m ago) 4h19m
kube-controller-manager-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 12 (4h2m ago) 4h30m
kube-scheduler-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1/1 Running 10 (4h2m ago) 4h30m
Configure GPU Passthrough¶
The host I'm using has 4 Nvidia "3D Controllers" which are A10s. We need to configure cloud-hypervisor to pass these through to the VM. Before we do that, we need to think of the k8s scheduling considerations. Currently, the cluster does not know about the resource contraints of the GPUs, so we must tell it about these. Once we tell it about the hardware, we need some way to parametrize the pods such that they will be attached to only one of these GPUs (for bonus points, we could make it configurable how many GPUs are passed through).
To start, we'll statically pass through an arbitrarily selected GPU. Let's do the one at PCI address pci@0000:17:00.0. We confirm IOMMU is enabled:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# grep iommu /proc/cmdline
BOOT_IMAGE=/boot/vmlinuz-5.14.15-custom root=UUID=3603dbb9-70be-449b-b3ba-5cad4dc8c67f ro systemd.unified_cgroup_hierarchy=1 cgroup_no_v1=all rd.driver.pre=vfio-pci video=efifb:off vga=normal nofb nomodeset usbcore.nousb hugepagesz=1G default_hugepagesz=1G transparent_hugepage=never ipv6.disable=1 console=tty1 console=ttyS0 intel_iommu=on hugepages=906
lshw also shows that this device is already using the vfio-pci driver:
Text Only
*-display
description: 3D controller
product: GA102GL [A10]
vendor: NVIDIA Corporation
physical id: 0
bus info: pci@0000:17:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm bus_master cap_list
configuration: driver=vfio-pci latency=0
NVIDIA GPU Operator¶
Nvidia provides a GPU operator that works specifically with Kata containers: https://docs.nvidia.com/datacenter/cloud-native/gpu-operator/24.9.1/gpu-operator-kata.html. We can leverage this for our purposes. First, we'll label our single worker node as such:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# kubectl label node inst-5c3dw-san-jose-dev-a10-hypervisors-pool nvidia.com/gpu.workload.config=vm-passthrough
node/inst-5c3dw-san-jose-dev-a10-hypervisors-pool labeled
We apply the confidential-containers operator:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# export VERSION=v0.15.0
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# kubectl apply -k "github.com/confidential-containers/operator/config/release?ref=${VERSION}"
namespace/confidential-containers-system created
customresourcedefinition.apiextensions.k8s.io/ccruntimes.confidentialcontainers.org created
serviceaccount/cc-operator-controller-manager created
role.rbac.authorization.k8s.io/cc-operator-leader-election-role created
clusterrole.rbac.authorization.k8s.io/cc-operator-manager-role created
clusterrole.rbac.authorization.k8s.io/cc-operator-metrics-auth-role created
clusterrole.rbac.authorization.k8s.io/cc-operator-metrics-reader created
rolebinding.rbac.authorization.k8s.io/cc-operator-leader-election-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/cc-operator-manager-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/cc-operator-metrics-auth-rolebinding created
configmap/cc-operator-manager-config created
service/cc-operator-controller-manager-metrics-service created
deployment.apps/cc-operator-controller-manager created
We can see this operator running:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# kubectl get pod,svc -n confidential-containers-system
NAME READY STATUS RESTARTS AGE
pod/cc-operator-controller-manager-755b756c8d-dfhgq 1/1 Running 0 70s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cc-operator-controller-manager-metrics-service ClusterIP 10.254.192.61 <none> 8443/TCP 70s
We download the sample confidential-containers config and modify the ccNodeSelector according to the gpu-operator docs:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# kubectl apply --dry-run=client -o yaml \
-k "github.com/confidential-containers/operator/config/samples/ccruntime/default?ref=${VERSION}" > ccruntime.yaml
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# ls
ccruntime.yaml cnn-mnist kubeadm.yaml
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# vim ccruntime.yaml
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# kubectl apply -f ./ccruntime.yaml
ccruntime.confidentialcontainers.org/ccruntime-sample created
We can see the different runtime classes now:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# kubectl get runtimeclass
NAME HANDLER AGE
kata kata-qemu 2s
kata-clh kata-clh 2s
kata-qemu kata-qemu 2s
kata-qemu-coco-dev kata-qemu-coco-dev 2s
kata-qemu-snp kata-qemu-snp 2s
kata-qemu-tdx kata-qemu-tdx 2s
Now to install gpu-operator. We need to install helm first:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# wget https://get.helm.sh/helm-v3.17.4-linux-amd64.tar.gz
--2025-08-12 21:01:36-- https://get.helm.sh/helm-v3.17.4-linux-amd64.tar.gz
Resolving get.helm.sh (get.helm.sh)... 13.107.246.69, 2620:1ec:bdf::69
Connecting to get.helm.sh (get.helm.sh)|13.107.246.69|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 17492957 (17M) [application/x-tar]
Saving to: ‘helm-v3.17.4-linux-amd64.tar.gz’
helm-v3.17.4-linux-amd64.tar.gz 100%[============================================================================================================================================>] 16.68M 23.5MB/s in 0.7s
2025-08-12 21:01:37 (23.5 MB/s) - ‘helm-v3.17.4-linux-amd64.tar.gz’ saved [17492957/17492957]
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# tar -xzf ./helm-v3.17.4-linux-amd64.tar.gz
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp# cp linux-amd64/helm /usr/local/bin
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/tmp#
Add the repo:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-operator# helm repo add nvidia https://helm.ngc.nvidia.com/nvidia
"nvidia" already exists with the same configuration, skipping
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-operator# helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "nvidia" chart repository
Update Complete. ⎈Happy Helming!⎈
Install via helm:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-operator# helm install --wait --generate-name -n gpu-operator --create-namespace nvidia/gpu-operator --version=v25.3.2 --set sandboxWorkloads.enabled=true --set kataManager.enabled=true --set sandboxWorkloads.defaultWorkload=vm-passthrough
W0812 21:10:43.045286 1618864 warnings.go:70] spec.template.spec.affinity.nodeAffinity.preferredDuringSchedulingIgnoredDuringExecution[0].preference.matchExpressions[0].key: node-role.kubernetes.io/master is use "node-role.kubernetes.io/control-plane" instead
W0812 21:10:43.045294 1618864 warnings.go:70] spec.template.spec.affinity.nodeAffinity.preferredDuringSchedulingIgnoredDuringExecution[0].preference.matchExpressions[0].key: node-role.kubernetes.io/master is use "node-role.kubernetes.io/control-plane" instead
NAME: gpu-operator-1755033042
LAST DEPLOYED: Tue Aug 12 21:10:42 2025
NAMESPACE: gpu-operator
STATUS: deployed
REVISION: 1
TEST SUITE: None
We can see Kata Manager and VFIO manager running:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-operator# kubectl get pods -n gpu-operator
NAME READY STATUS RESTARTS AGE
gpu-operator-1755033042-node-feature-discovery-gc-54689d78prdts 1/1 Running 0 56s
gpu-operator-1755033042-node-feature-discovery-master-8467mfhh5 1/1 Running 0 56s
gpu-operator-1755033042-node-feature-discovery-worker-w7vwg 1/1 Running 0 56s
gpu-operator-6d8ddb9b8c-l7lh6 1/1 Running 0 56s
nvidia-kata-manager-ft8gl 1/1 Running 0 32s
nvidia-sandbox-validator-bv8q6 1/1 Terminating 0 33s
nvidia-vfio-manager-rtdj4 0/1 Init:0/1 0 32s
nvidia-kata-manager issue related to networking¶
After a while, the nvidia-kata-manager pod was restarting:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-operator# kubectl get pods -n gpu-operator
NAME READY STATUS RESTARTS AGE
gpu-operator-1755033042-node-feature-discovery-gc-54689d78prdts 1/1 Running 0 7m28s
gpu-operator-1755033042-node-feature-discovery-master-8467mfhh5 1/1 Running 0 7m28s
gpu-operator-1755033042-node-feature-discovery-worker-w7vwg 1/1 Running 0 7m28s
gpu-operator-6d8ddb9b8c-l7lh6 1/1 Running 0 7m28s
nvidia-kata-manager-ft8gl 1/1 Running 2 (42s ago) 7m4s
nvidia-sandbox-device-plugin-daemonset-2994m 1/1 Running 0 6m24s
nvidia-sandbox-validator-vxg7q 1/1 Running 0 6m24s
nvidia-vfio-manager-rtdj4 1/1 Running 0 7m4s
The errors:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/clusterrolebindings# kubectl -n gpu-operator logs nvidia-kata-manager-ft8gl
Starting k8s-kata-manager
W0812 21:35:44.132097 2549393 main.go:171] No namespace specified, using current namespace
I0812 21:35:44.132241 2549393 main.go:224] K8s-kata-manager Worker undefined
I0812 21:35:44.132248 2549393 main.go:225] NodeName: 'inst-5c3dw-san-jose-dev-a10-hypervisors-pool'
I0812 21:35:44.132252 2549393 main.go:226] Kubernetes namespace: 'gpu-operator'
I0812 21:35:44.132256 2549393 main.go:228] Parsing configuration file
I0812 21:35:44.132398 2549393 main.go:205] configuration file "/etc/kata-manager/config.yaml" parsed
I0812 21:35:44.132492 2549393 main.go:237] Running with configuration:
artifactsDir: /opt/nvidia-gpu-operator/artifacts/runtimeclasses
runtimeClasses:
- artifacts:
url: nvcr.io/nvidia/cloud-native/kata-gpu-artifacts:ubuntu22.04-535.54.03
name: kata-nvidia-gpu
- artifacts:
url: nvcr.io/nvidia/cloud-native/kata-gpu-artifacts:ubuntu22.04-535.86.10-snp
name: kata-nvidia-gpu-snp
nodeSelector:
nvidia.com/cc.capable: "true"
I0812 21:35:44.132717 2549393 main.go:394] Initializing
I0812 21:35:44.132762 2549393 main.go:252] Loading kernel modules required for kata workloads
I0812 21:35:44.132769 2549393 main.go:456] Loading kernel module vhost-vsock
I0812 21:35:44.135002 2549393 main.go:456] Loading kernel module vhost-net
I0812 21:35:44.136651 2549393 main.go:467] Generating a CDI specification for all NVIDIA GPUs configured for passthrough
I0812 21:35:44.224356 2549393 lib-vfio.go:65] Found NVIDIA device: address=0000:17:00.0, driver=vfio-pci, iommu_group=25, deviceId=2236
I0812 21:35:44.224378 2549393 lib-vfio.go:65] Found NVIDIA device: address=0000:31:00.0, driver=vfio-pci, iommu_group=31, deviceId=2236
I0812 21:35:44.224383 2549393 lib-vfio.go:65] Found NVIDIA device: address=0000:b1:00.0, driver=vfio-pci, iommu_group=182, deviceId=2236
I0812 21:35:44.224388 2549393 lib-vfio.go:65] Found NVIDIA device: address=0000:ca:00.0, driver=vfio-pci, iommu_group=188, deviceId=2236
I0812 21:35:44.224952 2549393 option.go:101] Loading config: /runtime/config-dir/config.toml
I0812 21:35:44.225042 2549393 option.go:119] Successfully loaded config
E0812 21:38:50.789654 2549393 main.go:292] error pulling artifact: failed to resolve ubuntu22.04-535.54.03: Get "https://nvcr.io/v2/nvidia/cloud-native/kata-gpu-artifacts/manifests/ubuntu22.04-535.54.03": dial tcp: lookup nvcr.io: i/o timeout
I0812 21:38:50.789699 2549393 main.go:516] Shutting Down
I0812 21:38:50.789808 2549393 main.go:219] Exiting
E0812 21:38:50.789833 2549393 main.go:182] failed to resolve ubuntu22.04-535.54.03: Get "https://nvcr.io/v2/nvidia/cloud-native/kata-gpu-artifacts/manifests/ubuntu22.04-535.54.03": dial tcp: lookup nvcr.io: i/o timeout
Hmm, it seems the containers don't have access to the internet. We installed cilium using the CLI, but let's try using the helm chart as shown in their docs page.
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s# curl -LO https://github.com/cilium/cilium/archive/main.tar.gz
tar xzf main.tar.gz
cd cilium-main/install/kubernetes
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 80.4M 0 80.4M 0 0 10.8M 0 --:--:-- 0:00:07 --:--:-- 11.1M
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cilium-main/install/kubernetes# ls
Makefile Makefile.digests Makefile.values cilium
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cilium-main/install/kubernetes# ls cilium
Chart.yaml LICENSE README.md README.md.gotmpl files templates values.schema.json values.yaml values.yaml.tmpl
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cilium-main/install/kubernetes# helm install cilium ./cilium \
--namespace kube-system
NAME: cilium
LAST DEPLOYED: Tue Aug 12 21:58:09 2025
NAMESPACE: kube-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
You have successfully installed Cilium with Hubble.
Your release version is 1.19.0-dev.
Cilium says not all of the cilium-operator pods are available:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cilium-main/install/kubernetes# cilium status
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: 1 errors, 2 warnings
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: disabled
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 1, Ready: 1/1, Available: 1/1
DaemonSet cilium-envoy Desired: 1, Ready: 1/1, Available: 1/1
Deployment cilium-operator Desired: 2, Ready: 1/2, Available: 1/2, Unavailable: 1/2
Containers: cilium Running: 1
cilium-envoy Running: 1
cilium-operator Running: 1, Pending: 1
clustermesh-apiserver
hubble-relay
Cluster Pods: 11/11 managed by Cilium
Helm chart version: 1.19.0-dev
Image versions cilium quay.io/cilium/cilium-ci:latest: 1
cilium-envoy quay.io/cilium/cilium-envoy:v1.35.0-1754542821-43b62ac18029bf5e22cbcc9e7141ee55eb09555d@sha256:2173f013b41e71cf8d65503cc9710c106746efbd93ae0ef3f46ee65de13b19f6: 1
cilium-operator quay.io/cilium/operator-generic-ci:latest: 2
Errors: cilium-operator cilium-operator 1 pods of Deployment cilium-operator are not ready
Warnings: cilium-operator cilium-operator-7fc566c698-9nh95 pod is pending
cilium-operator cilium-operator-7fc566c698-9nh95 pod is pending
Because the node is not available:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cilium-main/install/kubernetes# kubectl describe node inst-5c3dw-san-jose-dev-a10-hypervisors-pool | tail -n 20
kube-system cilium-envoy-rvhhc 0 (0%) 0 (0%) 0 (0%) 0 (0%) 4m34s
kube-system cilium-operator-7fc566c698-gxtpx 0 (0%) 0 (0%) 0 (0%) 0 (0%) 4m34s
kube-system etcd-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1 (0%) 0 (0%) 1Gi (0%) 0 (0%) 5h51m
kube-system kube-apiserver-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1 (0%) 0 (0%) 1Gi (0%) 0 (0%) 6h1m
kube-system kube-controller-manager-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 1 (0%) 0 (0%) 1Gi (0%) 0 (0%) 6h13m
kube-system kube-scheduler-inst-5c3dw-san-jose-dev-a10-hypervisors-pool 100m (0%) 0 (0%) 0 (0%) 0 (0%) 6h13m
Allocated resources:
(Total limits may be over 100 percent, i.e., overcommitted.)
Resource Requests Limits
-------- -------- ------
cpu 3715m (2%) 700m (0%)
memory 3722Mi (3%) 6282Mi (6%)
ephemeral-storage 0 (0%) 0 (0%)
hugepages-1Gi 0 (0%) 0 (0%)
hugepages-2Mi 0 (0%) 0 (0%)
nvidia.com/GA102GL_A10 0 0
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal CIDRNotAvailable 3m (x563 over 123m) cidrAllocator Node inst-5c3dw-san-jose-dev-a10-hypervisors-pool status is now: CIDRNotAvailable
With a little research, it appears we need to tell the kube-controller-manager to not allocate node CIDRs because we are using the Cilium IPAM instead. We need to set this value to false:
Text Only
grep allocate-node-cidr /etc/kubernetes/manifests/kube-controller-manager.yaml
- --allocate-node-cidrs=true
A relevant Github issue describing the confusing nature of this parameter: https://github.com/cilium/cilium/issues/37759
We can see now that the kubernetes IPAM is not allocating any pod CIDRs, but Cilium is:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl get nodes -o custom-columns=NAME:.metadata.name,PODCIDR:.spec.podCIDR,PODCIDRs:.spec.podCIDRs
NAME PODCIDR PODCIDRs
inst-5c3dw-san-jose-dev-a10-hypervisors-pool <none> <none>
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl get ciliumnodes.cilium.io -A \
-o custom-columns=NAME:.metadata.name,PODCIDRs:.spec.ipam.podCIDRs
NAME PODCIDRs
inst-5c3dw-san-jose-dev-a10-hypervisors-pool [10.0.0.0/24]
The cilium pod is still pending:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl -n kube-system get pod -l name=cilium-operator
NAME READY STATUS RESTARTS AGE
cilium-operator-7fc566c698-gxtpx 1/1 Running 0 17h
cilium-operator-7fc566c698-zpxd6 0/1 Pending 0 14m
It's because there are no free ports:
Text Only
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 4m27s (x3 over 14m) default-scheduler 0/1 nodes are available: 1 node(s) didn't have free ports for the requested pod ports. preemption: 0/1 nodes are available: 1 node(s) didn't have free ports for the requested pod ports.
Cilium is likely expecting a negative affinity for the two replicas. The fact that we're running on a single-node cluster means that it's simply trying to allocate two pods with the same port numbers on the same node, which obviously won't work. We can scale back the deployment to one pod:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl -n kube-system scale deploy cilium-operator --replicas=1
deployment.apps/cilium-operator scaled
Now Cilium is healthy:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# cilium status
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: OK
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: disabled
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 1, Ready: 1/1, Available: 1/1
DaemonSet cilium-envoy Desired: 1, Ready: 1/1, Available: 1/1
Deployment cilium-operator Desired: 1, Ready: 1/1, Available: 1/1
Containers: cilium Running: 1
cilium-envoy Running: 1
cilium-operator Running: 1
clustermesh-apiserver
hubble-relay
Cluster Pods: 11/11 managed by Cilium
Helm chart version: 1.19.0-dev
Image versions cilium quay.io/cilium/cilium-ci:latest: 1
cilium-envoy quay.io/cilium/cilium-envoy:v1.35.0-1754542821-43b62ac18029bf5e22cbcc9e7141ee55eb09555d@sha256:2173f013b41e71cf8d65503cc9710c106746efbd93ae0ef3f46ee65de13b19f6: 1
cilium-operator quay.io/cilium/operator-generic-ci:latest: 1
We can also see now that our original problem of the kata-manager not being able to contact the outside world has been resolved:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# kubectl -n gpu-operator logs nvidia-kata-manager-wvz4f
Starting k8s-kata-manager
W0813 15:47:02.372799 2113338 main.go:171] No namespace specified, using current namespace
I0813 15:47:02.372925 2113338 main.go:224] K8s-kata-manager Worker undefined
I0813 15:47:02.372930 2113338 main.go:225] NodeName: 'inst-5c3dw-san-jose-dev-a10-hypervisors-pool'
I0813 15:47:02.372933 2113338 main.go:226] Kubernetes namespace: 'gpu-operator'
I0813 15:47:02.372936 2113338 main.go:228] Parsing configuration file
I0813 15:47:02.373067 2113338 main.go:205] configuration file "/etc/kata-manager/config.yaml" parsed
I0813 15:47:02.373162 2113338 main.go:237] Running with configuration:
artifactsDir: /opt/nvidia-gpu-operator/artifacts/runtimeclasses
runtimeClasses:
- artifacts:
url: nvcr.io/nvidia/cloud-native/kata-gpu-artifacts:ubuntu22.04-535.54.03
name: kata-nvidia-gpu
- artifacts:
url: nvcr.io/nvidia/cloud-native/kata-gpu-artifacts:ubuntu22.04-535.86.10-snp
name: kata-nvidia-gpu-snp
nodeSelector:
nvidia.com/cc.capable: "true"
I0813 15:47:02.373378 2113338 main.go:394] Initializing
I0813 15:47:02.373421 2113338 main.go:252] Loading kernel modules required for kata workloads
I0813 15:47:02.373427 2113338 main.go:456] Loading kernel module vhost-vsock
I0813 15:47:02.375227 2113338 main.go:456] Loading kernel module vhost-net
I0813 15:47:02.376866 2113338 main.go:467] Generating a CDI specification for all NVIDIA GPUs configured for passthrough
I0813 15:47:02.466544 2113338 lib-vfio.go:65] Found NVIDIA device: address=0000:17:00.0, driver=vfio-pci, iommu_group=25, deviceId=2236
I0813 15:47:02.466573 2113338 lib-vfio.go:65] Found NVIDIA device: address=0000:31:00.0, driver=vfio-pci, iommu_group=31, deviceId=2236
I0813 15:47:02.466577 2113338 lib-vfio.go:65] Found NVIDIA device: address=0000:b1:00.0, driver=vfio-pci, iommu_group=182, deviceId=2236
I0813 15:47:02.466581 2113338 lib-vfio.go:65] Found NVIDIA device: address=0000:ca:00.0, driver=vfio-pci, iommu_group=188, deviceId=2236
I0813 15:47:02.467100 2113338 option.go:101] Loading config: /runtime/config-dir/config.toml
I0813 15:47:02.467181 2113338 option.go:119] Successfully loaded config
Run an Example Workload¶
At this point, it appears from a superficial perspective that the cluster is healthy and everything has been configured. We first determine the resource name for the GPU passthrough:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/worker-basic/k8s# kubectl get nodes -l nvidia.com/gpu.present -o json | \
jq '.items[0].status.allocatable |
with_entries(select(.key | startswith("nvidia.com/"))) |
with_entries(select(.value != "0"))'
{
"nvidia.com/GA102GL_A10": "4"
}
As expected, this shows us 4 A10 GPUs. Our deployment/pod manifest needs specific annotations to request both the kata runtime class (using cloud-hypervisor) and the specific kind of GPU we want. We apply the following pod manifest that specifies the cdi.k8s.io annotation (selects the specific GPU index we want) and the A10 resource it needs:
```yaml title="cuda-vectoradd-kata.yaml apiVersion: v1 kind: Pod metadata: name: cuda-vectoradd-kata annotations: cdi.k8s.io/gpu: "nvidia.com/pgpu=0" io.katacontainers.config.hypervisor.default_memory: "16384" spec: runtimeClassName: kata-clh restartPolicy: OnFailure containers: - name: cuda-vectoradd image: "nvcr.io/nvidia/k8s/cuda-sample:vectoradd-cuda11.7.1-ubuntu20.04" resources: limits: "nvidia.com/GA102GL_A10": 1
Warning FailedCreatePodSandBox 78s kubelet Failed to create pod sandbox: rpc error: code = Unknown desc = failed to start sandbox "8fc905e1cb2ff0b42db3babe28fa4cfb114a31bd6cfbdc5ae30f4bbd1198d3cc": failed to create containerd task: failed to create shim task: annotation io.katacontainers.config.hypervisor.default_memory is not enabledText Only
This is kata-containers telling us that we have not allowed the `default_memory` annotation to be passed. We can modify `/opt/kata/share/defaults/kata-containers/configuration-clh.toml` to allow this:
```toml title="/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
# List of valid annotation names for the hypervisor
# Each member of the list is a regular expression, which is the base name
# of the annotation, e.g. "path" for io.katacontainers.config.hypervisor.path"
enable_annotations = ["enable_iommu", "virtio_fs_extra_args", "kernel_params", "default_memory"]
Note on Runtimeclass and Handlers¶
When we view the runtime classes configured in k8s:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# kubectl get runtimeclass
NAME HANDLER AGE
kata kata-qemu 19h
kata-clh kata-clh 19h
kata-nvidia-gpu kata-nvidia-gpu 19h
kata-nvidia-gpu-snp kata-nvidia-gpu-snp 19h
kata-qemu kata-qemu 19h
kata-qemu-coco-dev kata-qemu-coco-dev 19h
kata-qemu-snp kata-qemu-snp 19h
kata-qemu-tdx kata-qemu-tdx 19h
nvidia nvidia 19h
We must pause and think about what this means. A runtimeclass in k8s is simply a label that maps a name to a runtime handler. The "handler" is a string parameter passed to containerd that specifies the exact kind of OCI runtime we want this to run under. From kubernete's perspective, this resource is literally just a string to string mapping, nothing else! All the magic resides in containerd itself. For example, the kata-clh runtime config can be inspected via the containerd config.
/etc/containerd/config.toml
imports = ["/etc/containerd/config.toml.d/nydus-snapshotter.toml", "/opt/kata/containerd/config.d/kata-deploy.toml"]
version = 2
[plugins."io.containerd.grpc.v1.cri".containerd]
disable_snapshot_annotations = false
default_runtime_name = "runc"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
runtime_type = "io.containerd.runc.v2"
privileged_without_host_devices = false
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
BinaryName = "runc"
SystemdCgroup = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata]
runtime_type = "io.containerd.kata.v2"
privileged_without_host_devices = true
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
We don't see the kata-clh runtime here, so let's look at the imported kata-deploy.toml config.
/opt/kata/containerd/config.d/kata-deploy.toml
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh]
runtime_type = "io.containerd.kata-clh.v2"
runtime_path = "/opt/kata/bin/containerd-shim-kata-v2"
privileged_without_host_devices = true
pod_annotations = ["io.katacontainers.*"]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-clh.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu]
runtime_type = "io.containerd.kata-qemu.v2"
runtime_path = "/opt/kata/bin/containerd-shim-kata-v2"
privileged_without_host_devices = true
pod_annotations = ["io.katacontainers.*"]
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-qemu.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-coco-dev]
runtime_type = "io.containerd.kata-qemu-coco-dev.v2"
runtime_path = "/opt/kata/bin/containerd-shim-kata-v2"
privileged_without_host_devices = true
pod_annotations = ["io.katacontainers.*"]
snapshotter = "nydus"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-coco-dev.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-qemu-coco-dev.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-tdx]
runtime_type = "io.containerd.kata-qemu-tdx.v2"
runtime_path = "/opt/kata/bin/containerd-shim-kata-v2"
privileged_without_host_devices = true
pod_annotations = ["io.katacontainers.*"]
snapshotter = "nydus"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-tdx.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-qemu-tdx.toml"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-snp]
runtime_type = "io.containerd.kata-qemu-snp.v2"
runtime_path = "/opt/kata/bin/containerd-shim-kata-v2"
privileged_without_host_devices = true
pod_annotations = ["io.katacontainers.*"]
snapshotter = "nydus"
[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-qemu-snp.options]
ConfigPath = "/opt/kata/share/defaults/kata-containers/configuration-qemu-snp.toml"
Aha. Here we can see the [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.kata-clh] config. This specifies things like:
- The path to the containerd shim executable.
- The kata configuration (which is the most important bit)
- Other annotation bits
If we look at a small portion of the kata configuration:
/opt/kata/share/defaults/kata-containers/configuration-clh.toml
[hypervisor.clh]
path = "/opt/kata/bin/cloud-hypervisor"
kernel = "/opt/kata/share/kata-containers/vmlinux.container"
image = "/opt/kata/share/kata-containers/kata-containers.img"
We can it specifies the executable path to cloud-hypervisor (our VMM), the kernel to load, and the VM image.
Hot Plugging GPUs¶
The container could not run as-is. I kept getting errors like:
when the container was trying to launch. This came from kata itself. In order to have the VFIO device pass through, we have to tell kata to enable hot-plugging of the device on the cloud-hypervisor side.
/opt/kata/share/defaults/kata-containers/configuration-clh.toml
# Enable hot-plugging of VFIO devices to a root-port.
# The default setting is "no-port"
hot_plug_vfio = "root-port"
The container could still not boot, giving us a new error:
Text Only
Warning Failed 30s kubelet Error: failed to create containerd task: failed to create shim task: Failed to hotplug device &{ID:vfio-efaf69af31265f060 BDF:0000:b1:00.0 SysfsDev:/sys/bus/pci/devices/0000:b1:00.0 DevfsDev: VendorID:0x10de DeviceID:0x2236 Class:0x030200 Bus:rp3 GuestPciPath: Type:1 IsPCIe:true APDevices:[] Port:root-port HostPath:/dev/vfio/182} error: 500 reason: Failed to validate config: Duplicated device path: /sys/bus/pci/devices/0000:b1:00.0
I read more of the kata docs and noticed there is a section specifically on GPU passthrough: https://github.com/kata-containers/kata-containers/blob/main/docs/use-cases/NVIDIA-GPU-passthrough-and-Kata.md#build-kata-containers-kernel-with-gpu-support
Quote
The default guest kernel installed with Kata Containers does not provide GPU support. To use an NVIDIA GPU with Kata Containers, you need to build a kernel with the necessary GPU support.
Aha, so this may be the problem. We look at the config for the CLH runtime:
It turns out there is already a /opt/kata/share/kata-containers/vmlinux-nvidia-gpu.container linux kernel available. We might just need to point kata at this. Sadly, this was not the issue, we get the same error:
Text Only
Warning Failed 7s kubelet Error: failed to create containerd task: failed to create shim task: Failed to hotplug device &{ID:vfio-0a3660d8754cef520 BDF:0000:17:00.0 SysfsDev:/sys/bus/pci/devices/0000:17:00.0 DevfsDev: VendorID:0x10de DeviceID:0x2236 Class:0x030200 Bus:rp1 GuestPciPath: Type:1 IsPCIe:true APDevices:[] Port:root-port HostPath:/dev/vfio/25} error: 500 reason: Failed to validate config: Duplicated device path: /sys/bus/pci/devices/0000:17:00.0
ChatGPT Help¶
I asked ChatGPT why the device was being added twice. This is our conversation:
Question
I'm running kata-containers in k8s using cloud-hypervisor. When attempting to start a container that requests a single nvidia GPU, I get this error that you can see. How do I confirm where the device is trying to be added twice?
Text Only
You’re getting “Duplicated device path: /sys/bus/pci/devices/0000:17:00.0” because the same GPU is being asked to hot-plug twice into the VM. In your describe output I see both:
• a CDI annotation: cdi.k8s.io/gpu: nvidia.com/pgpu=1
• a resource request/limit: nvidia.com/GA102GL_A10: 1
That combo often results in two injection paths (CDI + device-plugin mounts/env) pointing at the same VFIO device. Cloud-Hypervisor then sees two add-device calls for the same BDF (0000:17:00.0) — note the two attempts with Bus: rp0 and Bus: rp1 in your logs.
Here’s how to prove exactly where the duplication comes from and fix it.
⸻
Confirm where it’s added twice
1) Pod & container spec (pre-Kata)
Check whether duplication is already present in the OCI spec that containerd will hand to Kata.
# Pod + container resources/annotations
kubectl get pod cuda-vectoradd-kata -o json \
| jq '.metadata.annotations, .spec.containers[].resources.limits'
# Get container id
crictl ps | grep cuda-vectoradd | awk '{print $1}' | xargs -I{} crictl inspect {}
# In the output, look at:
# .info.runtimeSpec.linux.devices
# .info.runtimeSpec.annotations
If you see the same GPU/BDF represented twice (or two device entries that both resolve to /sys/bus/pci/devices/0000:17:00.0), the duplication is happening before Kata — i.e., CDI + device-plugin both injecting.
2) CDI catalogs (NVIDIA)
See what CDI is advertising and whether there are overlapping entries that resolve to the same sysfs path.
# Where CDI specs live
ls -1 /etc/cdi /var/run/cdi 2>/dev/null
# Inspect NVIDIA CDI specs for the BDF
grep -R "0000:17:00.0" /etc/cdi /var/run/cdi 2>/dev/null || true
# If installed:
nvidia-ctk cdi list --mode all 2>/dev/null
If you find multiple CDI device entries that ultimately point to the same VFIO/IOMMU group or the same BDF, that’s another place the duplication can originate.
3) Kata’s live sandbox view
Confirm whether Kata itself queued the same host device twice.
# Find the Kata sandbox id for this pod
ctr -n k8s.io tasks ls | grep cuda-vectoradd
# Note the sandbox/container ids
# Kata stores per-sandbox state here:
ls -1 /run/vc/sbs
# Pick the recent one; then:
grep -R "0000:17:00.0" /run/vc/sbs/<sandbox-id> 2>/dev/null || true
You may see the device recorded twice in Kata’s device lists if it’s receiving duplication from the OCI spec/CDI.
4) Cloud-Hypervisor API (optional but decisive)
If the VM is still up long enough, list devices Cloud-Hypervisor thinks are attached/being attached.
# Kata usually exposes the clh api socket here
SOCK=$(ls /run/vc/sbs/<sandbox-id>/*-api.sock 2>/dev/null | head -n1)
# Requires ch-remote tool (often packaged with clh)
ch-remote --api-socket "$SOCK" info 2>/dev/null | grep -E "pci|vfio|0000:17:00.0" || true
Two add attempts for the same BDF clinches it.
⸻
Fix: pick one injection path
Do one of the following, not both:
Option A (recommended): Use the device plugin with resource requests only.
• Remove the CDI annotation from your pod:
• Delete cdi.k8s.io/gpu: nvidia.com/pgpu=1
• Keep: resources: limits: nvidia.com/GA102GL_A10: 1
Option B: Use CDI only (no resource requests).
• Keep the CDI annotation and remove the nvidia.com/<model> resource request/limit.
• Make sure your NVIDIA setup is CDI-mode only and the device plugin isn’t also injecting mounts/env for the same device.
After changing, redeploy the pod.
⸻
Extra sanity checks
• Make sure you’re not also manually mounting /dev/vfio/* or passing --device=/dev/vfio/* via anything else (initContainers, sidecars, admission webhooks).
• Verify the NVIDIA plugin mode:
• If you enabled CDI in the NVIDIA device plugin, don’t also use the legacy NVIDIA_VISIBLE_DEVICES/mount-based path in the same cluster.
• Confirm a single VFIO assignment for the GPU:
lspci -nn | grep -i nvidia
readlink -f /sys/bus/pci/devices/0000:17:00.0/iommu_group
# Only one VFIO group should be selected for this container
⸻
If you want, paste the output of crictl inspect (sanitized) for the container and I’ll point to the exact fields that are double-injecting. But yeah—the root cause is you’re telling the stack twice to pass through the same GPU. Pick one lane.
Question
The pgpu=0 parameter is suggested by the nvidia GPU operator docs: https://docs.nvidia.com/datacenter/cloud-native/gpu-operator/latest/gpu-operator-kata.html
In their example, they have both the resource limit request and the pgpu annotation. They say this about the pod annotation:
Text Only
The cdi.k8s.io/gpu: "nvidia.com/pgpu=0" annotation is used when the pod sandbox is created. The annotation ensures that the virtual machine created by the Kata runtime is created with the correct PCIe topology so that GPU passthrough succeeds.
The annotation refers to a Container Device Interface (CDI) device, nvidia.com/pgpu=0. The pgpu indicates passthrough GPU and the 0 indicates the device index. The index is defined by the order that the GPUs are enumerated on the PCI bus. The index does not correlate to a CUDA index.
The NVIDIA Kata Manager creates a CDI specification on the GPU nodes. The file includes a device entry for each passthrough device.
In the following sample /var/run/cdi/nvidia.com-pgpu.yaml file shows one GPU that is bound to the VFIO PCI driver:
Do you think they are wrong?
Text Only
Short answer: they’re not “wrong,” but their example assumes a very specific mode. In your cluster, you’re almost certainly running the NVIDIA device plugin in legacy injection and using the CDI pgpu annotation, so the same VFIO BDF gets added twice.
What NVIDIA means in that doc:
• The cdi.k8s.io/gpu: "nvidia.com/pgpu=0" annotation is used at pod sandbox creation to make Kata build the right PCIe topology inside the VM so passthrough works. It’s not intended to be a second injector.
• The device itself should be injected once via CDI through the NVIDIA stack (device plugin + container toolkit) when CDI mode is enabled.
Where folks get bit: the NVIDIA device plugin has multiple “device list strategies.” If it’s still on envvar/volume-mounts or PASS_DEVICE_SPECS=true, you keep legacy injection while CDI is also in play. Then you have:
• CDI/topology via the pgpu annotation and
• Legacy or CDI-based device injection via the plugin
→ cloud-hypervisor sees two add-device calls for the same /sys/bus/pci/devices/0000:17:00.0 and rejects it as duplicated.
Do this to prove/fix it fast:
1. Inspect the device plugin args (this is the smoking gun)
kubectl -n gpu-operator get ds nvidia-device-plugin-daemonset -o json \
| jq -r '.spec.template.spec.containers[0].args, .spec.template.spec.containers[0].env'
Look for:
• --device-list-strategy: if it’s "envvar" or "volume-mounts", you’re in legacy. For CDI-only it should be cdi-cri.
• PASS_DEVICE_SPECS=true means legacy-style mounts are being added.
2. Check the OCI spec actually handed to Kata
# find your container id then:
crictl inspect <cid> | jq '.info.runtimeSpec.linux.devices, .info.runtimeSpec.mounts, .info.runtimeSpec.annotations'
If you see two entries that both resolve to /sys/bus/pci/devices/0000:17:00.0 or two /dev/vfio/* paths, that’s the duplication pre-Kata.
3. Flip the plugin to CDI-only (no legacy)
• Set --device-list-strategy=cdi-cri (or the equivalent via Helm/values).
• Ensure PASS_DEVICE_SPECS is unset/false.
• If you’re intentionally running both modes, use separate runtimeClasses (e.g., nvidia-cdi and nvidia-legacy) and don’t mix them on the same pod.
4. Keep the NVIDIA pgpu annotation + your limits: nvidia.com/<model>: 1
That’s exactly what their doc shows—as long as the plugin is CDI-mode so there’s only one injector and the annotation just helps Kata with the VM PCIe layout.
If you want me to sanity-check, paste the device plugin args/env and the crictl inspect chunks for .linux.devices + .annotations. I’ll point to the duplicate entries.
Question
This is the output of the daemonset.
I installed the Nvidia GPU Operator via a helm chart. How can I modify the chart's installation to change these parameters like you mentioned?
Text Only
Yep — your DaemonSet shows legacy injection is on:
• PASS_DEVICE_SPECS=true
• DEVICE_LIST_STRATEGY=envvar
That combo will mount devices the old way in addition to CDI, which is why you’re seeing the duplicate hot-plug. Flip the plugin to CDI-only and keep the Kata pgpu annotation.
Here’s how to do it cleanly with the GPU Operator Helm chart.
What to change (values)
• Enable CDI support in the operator (installs the CDI runtimeclass plumbing):
• cdi.enabled=true
• (Optionally) cdi.default=true if you want CDI to be the default path.
• Make the device plugin advertise GPUs via CDI/CRI only:
• devicePlugin.env[0].name=PASS_DEVICE_SPECS → false
• devicePlugin.env[1].name=DEVICE_LIST_STRATEGY → cdi-cri
(envvar/volume-mounts keep legacy; cdi-cri is the CRI-native CDI path.)
One-liner upgrade
If you installed as release name gpu-operator in namespace gpu-operator:
helm upgrade --install gpu-operator nvidia/gpu-operator \
-n gpu-operator \
--set cdi.enabled=true \
--set cdi.default=true \
--set devicePlugin.env[0].name=PASS_DEVICE_SPECS \
--set devicePlugin.env[0].value=false \
--set devicePlugin.env[1].name=DEVICE_LIST_STRATEGY \
--set devicePlugin.env[1].value=cdi-cri
Tip: arrays are replaced in Helm, so by setting devicePlugin.env[...] you wipe the old env list (including that stray NVIDIA_VISIBLE_DEVICES=all you saw). The devicePlugin.env hook point is in the chart’s values file.
If you prefer a values file
Create gpu-operator-overrides.yaml:
cdi:
enabled: true
default: true
devicePlugin:
env:
- name: PASS_DEVICE_SPECS
value: "false"
- name: DEVICE_LIST_STRATEGY
value: "cdi-cri"
Then:
helm upgrade --install gpu-operator nvidia/gpu-operator \
-n gpu-operator -f gpu-operator-overrides.yaml
Verify the change
kubectl -n gpu-operator get ds nvidia-device-plugin-daemonset -o json \
| jq -r '.spec.template.spec.containers[0].env'
# Expect PASS_DEVICE_SPECS=false and DEVICE_LIST_STRATEGY=cdi-cri
Re-create your pod with:
• resources.limits: nvidia.com/<model>: 1
• metadata.annotations: cdi.k8s.io/gpu: "nvidia.com/pgpu=0"
• Your Kata runtimeClass (e.g., kata-nvidia-gpu). The annotation helps the Kata VM pick the correct PCIe topology; CDI does the single injection.
If you’re curious where these knobs live:
• Operator values file shows devicePlugin.env and the cdi block you’re toggling.
• Device plugin docs explain DEVICE_LIST_STRATEGY options; cdi-cri avoids legacy paths.
If it still duplicates after this, we’ll pull crictl inspect for .runtimeSpec.linux.devices to see if anything else (an admission webhook, a manual /dev/vfio/* mount) is sneaking a second entry in. But 9 times out of 10, fixing those two env vars stops the double add.
CoreDNS disappeared¶
The nvidia gpu-operator pods were failing because of DNS lookup failures. I noticed CoreDNS was not running, so I installed it from the helm chart:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# kubectl -n kube-system get deploy,svc,endpoints | grep -i dns
Warning: v1 Endpoints is deprecated in v1.33+; use discovery.k8s.io/v1 EndpointSlice
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# sudo grep -A2 -n 'clusterDNS' /var/lib/kubelet/config.yaml 2>/dev/null
16:clusterDNS:
17-- 10.254.192.10
18-clusterDomain: cluster.local
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# ps aux | grep kubelet | grep -- '--cluster-dns'
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# helm repo add coredns https://coredns.github.io/helm
"coredns" has been added to your repositories
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "coredns" chart repository
...Successfully got an update from the "nvidia" chart repository
Update Complete. ⎈Happy Helming!⎈
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/cuda-vectoradd-kata-test# helm upgrade --install coredns coredns/coredns -n kube-system \
--set service.clusterIP=10.254.192.10 \
--set rbac.create=true
Release "coredns" does not exist. Installing it now.
NAME: coredns
LAST DEPLOYED: Wed Aug 13 23:19:04 2025
NAMESPACE: kube-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CoreDNS is now running in the cluster as a cluster-service.
It can be tested with the following:
1. Launch a Pod with DNS tools:
kubectl run -it --rm --restart=Never --image=infoblox/dnstools:latest dnstools
2. Query the DNS server:
/ # host kubernetes
Realization of gpu-operator¶
I was struggling with getting the gpu-operator Daemonset pods to run successfully. I realized that they need access to host-level nvidia drivers which is not something we can do for security reasons. I made the decision to backtrack and take a different approach. The Nvidia device plugin utilizes Nvidia GPU drivers to dynamically inspect the available GPUs and their statuses. It provides to the k8s control place information regarding the installed GPUs on the host. We can do something similar with a custom device plugin that only relies on PCIe semantics to inspect GPUs and serve this information to k8s without the need for Nvidia drivers.
ChatGPT gave this explanation:
Chatgpt
Alright, let’s build a tiny Kubernetes device plugin that advertises “VFIO GPUs” and, on Allocate, returns CDI device IDs (so the runtime injects /dev/vfio/* etc. for you).
High-level flow (so you know what you’re wiring):
- A DaemonSet runs one plugin pod per node.
- The plugin registers with the kubelet over the device-plugin gRPC socket.
- It ListAndWatch’s a resource (e.g., vfio.example.com/pgpu) and reports N healthy devices.
- On Allocate, it returns CDI device names like vfio.example.com/pgpu=0000_65_00_0. Kubelet passes these to the runtime, which injects the device(s) declared in your CDI JSON. (This path is first-class in the v1beta1 API via the CDIDevices field. )
Below is a minimal, production-ish skeleton you can drop in and tweak.
⸻
1) Go module (device plugin)
go.mod
module yourco.com/vfio-device-plugin
go 1.22
require (
google.golang.org/grpc v1.64.0
k8s.io/kubelet v0.33.3
k8s.io/klog/v2 v2.120.1
)
main.go
package main
import (
"context"
"encoding/json"
"fmt"
"net"
"os"
"path/filepath"
"strings"
"time"
"google.golang.org/grpc"
"k8s.io/klog/v2"
dp "k8s.io/kubelet/pkg/apis/deviceplugin/v1beta1"
)
const (
resourceName = "vfio.example.com/pgpu" // advertise this extended resource
kubeletSocket = dp.KubeletSocket // "/var/lib/kubelet/device-plugins/kubelet.sock"
pluginEndpoint = "vfio-pgpu.sock"
)
type inventory struct {
// Minimal inventory: list of CDI names to hand out. Keep IDs stable.
CDI []string `json:"cdi"`
}
type server struct {
dp.UnimplementedDevicePluginServer
devs []*dp.Device
cdiDevices map[string]string // devID -> CDI name
stopCh chan struct{}
}
func newServer(inv inventory) *server {
devs := []*dp.Device{}
cdi := map[string]string{}
for i, name := range inv.CDI {
// Stable DeviceID you expose to kubelet (opaque to kubelet; you map it to CDI).
devID := fmt.Sprintf("vfio-%03d", i)
devs = append(devs, &dp.Device{ID: devID, Health: dp.Healthy})
cdi[devID] = name
}
return &server{devs: devs, cdiDevices: cdi, stopCh: make(chan struct{})}
}
func (s *server) GetDevicePluginOptions(context.Context, *dp.Empty) (*dp.DevicePluginOptions, error) {
// No PreStart required for VFIO; you can flip this true if you want a reset hook.
return &dp.DevicePluginOptions{PreStartRequired: false, GetPreferredAllocationAvailable: true}, nil
}
func (s *server) ListAndWatch(_ *dp.Empty, stream dp.DevicePlugin_ListAndWatchServer) error {
resp := &dp.ListAndWatchResponse{Devices: s.devs}
if err := stream.Send(resp); err != nil {
return err
}
// Keep the stream open; you can watch for health changes here.
<-s.stopCh
return nil
}
func (s *server) Allocate(ctx context.Context, req *dp.AllocateRequest) (*dp.AllocateResponse, error) {
var cars []*dp.ContainerAllocateResponse
for _, creq := range req.ContainerRequests {
var cdis []*dp.CDIDevice
for _, id := range creq.DevicesIDs {
name, ok := s.cdiDevices[id]
if !ok {
return nil, fmt.Errorf("unknown device id %q", id)
}
// Hand back the CDI name; runtime injects per CDI spec.
cdis = append(cdis, &dp.CDIDevice{Name: name})
}
cars = append(cars, &dp.ContainerAllocateResponse{
// You could also return env/mounts/devices, but CDI is the point here.
CDIDevices: cdis,
})
}
return &dp.AllocateResponse{ContainerResponses: cars}, nil
}
func (s *server) PreStartContainer(context.Context, *dp.PreStartContainerRequest) (*dp.PreStartContainerResponse, error) {
return &dp.PreStartContainerResponse{}, nil
}
func (s *server) GetPreferredAllocation(ctx context.Context, req *dp.PreferredAllocationRequest) (*dp.PreferredAllocationResponse, error) {
// Simple: return first N requested. You can implement topology-aware allocation.
var cresps []*dp.ContainerPreferredAllocationResponse
for _, c := range req.ContainerRequests {
resp := &dp.ContainerPreferredAllocationResponse{}
n := int(c.AllocationSize)
if n <= 0 || n > len(c.AvailableDeviceIDs) {
n = len(c.AvailableDeviceIDs)
}
resp.DeviceIDs = c.AvailableDeviceIDs[:n]
cresps = append(cresps, resp)
}
return &dp.PreferredAllocationResponse{ContainerResponses: cresps}, nil
}
func registerWithKubelet() error {
conn, err := grpc.Dial("unix://"+kubeletSocket, grpc.WithInsecure(), grpc.WithBlock(), grpc.WithTimeout(10*time.Second))
if err != nil {
return fmt.Errorf("dial kubelet: %w", err)
}
defer conn.Close()
client := dp.NewRegistrationClient(conn)
req := &dp.RegisterRequest{
Version: dp.Version,
Endpoint: pluginEndpoint,
ResourceName: resourceName,
Options: &dp.DevicePluginOptions{PreStartRequired: false, GetPreferredAllocationAvailable: true},
}
_, err = client.Register(context.Background(), req)
return err
}
func serveDP(srv *server) error {
socket := filepath.Join(dp.DevicePluginPath, pluginEndpoint)
_ = os.Remove(socket)
l, err := net.Listen("unix", socket)
if err != nil {
return fmt.Errorf("listen %s: %w", socket, err)
}
gs := grpc.NewServer()
dp.RegisterDevicePluginServer(gs, srv)
klog.Infof("device plugin gRPC serving on %s for resource %s", socket, resourceName)
return gs.Serve(l)
}
func loadInventory() (inventory, error) {
// Feed inventory via env or a mounted file.
// Example env: VFIO_CDI="vfio.example.com/pgpu=0000_65_00_0,vfio.example.com/pgpu=0000_17_00_0"
if raw := os.Getenv("VFIO_CDI"); raw != "" {
var inv inventory
for _, s := range strings.Split(raw, ",") {
inv.CDI = append(inv.CDI, strings.TrimSpace(s))
}
return inv, nil
}
// Or JSON file at /etc/vfio/inventory.json
b, err := os.ReadFile("/etc/vfio/inventory.json")
if err != nil {
return inventory{}, fmt.Errorf("no VFIO_CDI env and no /etc/vfio/inventory.json: %w", err)
}
var inv inventory
if err := json.Unmarshal(b, &inv); err != nil {
return inventory{}, err
}
return inv, nil
}
func main() {
klog.InitFlags(nil)
inv, err := loadInventory()
if err != nil {
klog.Fatalf("inventory: %v", err)
}
srv := newServer(inv)
// Serve gRPC
go func() {
if err := serveDP(srv); err != nil {
klog.Fatalf("grpc serve: %v", err)
}
}()
// Register with kubelet (retry a few times on startup races)
var regErr error
for i := 0; i < 20; i++ {
if err := registerWithKubelet(); err == nil {
regErr = nil
break
} else {
regErr = err
time.Sleep(3 * time.Second)
}
}
if regErr != nil {
klog.Fatalf("register with kubelet: %v", regErr)
}
// Block forever
select {}
}
Why this works:
- The device-plugin API’s ContainerAllocateResponse includes a CDIDevices field (type []*CDIDevice), and kubelet/runtimes pass those names through for CDI injection. (See the API surface on pkg.go.dev; it includes CDIDevice and GetCDIDevices() for v0.28+ of the kubelet module. )
- CDI itself is a runtime feature (containerd/CRI-O) that reads JSON specs and injects device nodes/mounts/env when it sees a CDI name. (Overview docs from Kubernetes and NVIDIA confirm CDI’s role with runtimes.)
⸻
2) Build & image
Text Only
CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -o vfio-device-plugin
# containerize however you like; distroless is fine
⸻
3) Deploy (DaemonSet)
- Mount the kubelet device-plugin socket.
- Feed inventory (list of CDI names) through an env var or ConfigMap/file.
- Run privileged: false (no host poking required; CDI does the injection).
- Tolerate master if you want it scheduled there.
deploy.yaml
apiVersion: v1
kind: Namespace
metadata: { name: vfio-system }
---
apiVersion: v1
kind: ServiceAccount
metadata: { name: vfio-device-plugin, namespace: vfio-system }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: vfio-device-plugin
namespace: vfio-system
spec:
selector: { matchLabels: { app: vfio-device-plugin } }
template:
metadata:
labels: { app: vfio-device-plugin }
spec:
serviceAccountName: vfio-device-plugin
nodeSelector:
kubernetes.io/arch: amd64
tolerations:
- operator: Exists
containers:
- name: plugin
image: ghcr.io/yourco/vfio-device-plugin:latest
imagePullPolicy: IfNotPresent
env:
# Comma-separated CDI device names present on this node
# e.g. "vfio.example.com/pgpu=0000_65_00_0,vfio.example.com/pgpu=0000_17_00_0"
- name: VFIO_CDI
valueFrom:
fieldRef:
fieldPath: metadata.annotations['vfio.example.com/cdi']
volumeMounts:
- name: kubelet-sock
mountPath: /var/lib/kubelet/device-plugins
securityContext:
allowPrivilegeEscalation: false
runAsNonRoot: true
seccompProfile: { type: RuntimeDefault }
volumes:
- name: kubelet-sock
hostPath: { path: /var/lib/kubelet/device-plugins, type: Directory }
How to set the CDI list per node:
- You can label/annotate each node with a list of CDI names discovered by a small init job or Node Feature Discovery hook (e.g., vfio.example.com/cdi: "vfio.example.com- pu=0000_65_00_0,..."). Your plugin reads that via the Downward API (shown above).
- Or mount /etc/vfio/inventory.json from a hostPath/ConfigMap if you prefer.
⸻
4) Pod usage (no annotations needed)
With the plugin running, tenants just request the resource:
YAML
apiVersion: v1
kind: Pod
metadata:
name: gpu-guest
spec:
runtimeClassName: kata-nvidia-gpu # your Kata class that passes /dev/vfio into the VM
containers:
- name: app
image: nvcr.io/nvidia/k8s/cuda-sample:vectoradd-cuda11.7.1-ubuntu20.04
resources:
limits:
vfio.example.com/pgpu: 1
At allocation, your plugin returns the CDI device name(s); kubelet/runtime injects the device nodes specified by the matching CDI JSON you placed on the host (e.g., /etc/cdi/vfio-gpus.json).
⸻
5) CDI spec reminder (host side)
You already saw this pattern earlier, but the runtime needs a CDI file present on the node:
/etc/cdi/vfio-gpus.json (example)
{
"cdiVersion": "0.6.0",
"kind": "VendorDevice",
"metadata": { "vendor": "vfio.example.com", "class": "pgpu" },
"devices": [
{
"name": "0000_65_00_0",
"containerEdits": {
"deviceNodes": [
{ "path": "/dev/vfio/vfio", "type": "c", "permissions": "rwm" },
{ "path": "/dev/vfio/42", "type": "c", "permissions": "rwm" }
],
"env": [{ "name": "GPU_PCI_ADDR", "value": "0000:65:00.0" }]
}
}
]
}
The fully-qualified CDI name your plugin returns is:
vfio.example.com/pgpu=0000_65_00_0
which matches vendor/class=name in that JSON. (CDI is consumed by containerd/CRI-O; the plugin just passes the string via CDIDevices.)
⸻
6) Sanity checks
- API check: you should see CDIDevice/GetCDIDevices() in k8s.io/kubelet/.../deviceplugin/v1beta1 (present in recent versions). If it’s not in your vendor tree, update - dules.
- Runtime: ensure your container runtime has CDI enabled (containerd and CRI-O do; NVIDIA docs describe CDI behavior, including fallback modes).
- Logs: kubelet should log registration of vfio.example.com/pgpu; kubectl describe node should show the resource allocatable/allocated.
⸻
7) Extensions you’ll probably want (later)
- Topology-aware allocation: Prefer same NUMA/IOMMU group, co-schedule sibling functions, etc.
- Health: Watch /dev/vfio/
and mark device Unhealthy if it disappears; push update via the ListAndWatch stream. - Dynamic inventory: Build a tiny sidecar that discovers VFIO-bound BDFs and writes the node annotation consumed by the plugin.
If you want me to add NUMA-aware preferred allocation and a real inventory scanner (via sysfs) to this sample, I can fold that in next.
Create gpu-device-plugin¶
I need to create my own CDI plugin that advertises the availability of the GPUs without the need for Nvidia drivers. I did that here. You can see my DaemonSet pod:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# kubectl get pods -n vfio-system
NAME READY STATUS RESTARTS AGE
vfio-device-plugin-cwv6x 1/1 Running 0 9m28s
What this plugin does is it registers its existence with the kubelet using the kubelet's unix domain socket. It opens its own socket that exposes an API that serves the spec outlined here. Basically, it does two things:
- Advertises the list of GPUs available (which in my configuration is drawn from the file at
/etc/cdi/nvidia.com-gpu.jsonthat I manually curated) to the kubelet. - When a container allocation request comes in, it returns a list of OCI-specific devices names that will be passed to containerd.
/etc/cdi/nvidia.com-gpu.json
{
"cdiVersion": "0.7.0",
"containerEdits": {},
"devices": [
{
"containerEdits": {
"deviceNodes": [
{
"path": "/dev/vfio/25",
"permissions": "rwm",
"type": "c"
}
]
},
"name": "0"
},
{
"containerEdits": {
"deviceNodes": [
{
"path": "/dev/vfio/31",
"permissions": "rwm",
"type": "c"
}
]
},
"name": "1"
},
{
"containerEdits": {
"deviceNodes": [
{
"path": "/dev/vfio/182",
"permissions": "rwm",
"type": "c"
}
]
},
"name": "2"
},
{
"containerEdits": {
"deviceNodes": [
{
"path": "/dev/vfio/188",
"permissions": "rwm",
"type": "c"
}
]
},
"name": "3"
}
],
"kind": "nvidia.com/gpu"
}
There really is no magic here. When I describe the node, I can now see 4 allocatable nvidia.com/gpu devices:
Text Only
Allocatable:
cpu: 128
ephemeral-storage: 1917934852198
hugepages-1Gi: 906Gi
hugepages-2Mi: 0
memory: 106370796Ki
nvidia.com/GA102GL_A10: 0
nvidia.com/gpu: 4
pods: 110
The nvidia.com/GA102GL_A10 device is leftover from the Nvidia GPU Operator, and it's at 0 as expected.
VFIO¶
Because I uninstalled the Nvidia GPU operator, the GPUs are no longer bound to the VFIO driver:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# ls -lh /dev/vfio
total 0
crw-rw-rw- 1 root root 10, 196 Aug 1 21:16 vfio
I might want to also create an operator that binds the devices to VFIO, but for now let's try doing it manually for one of them:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# lspci |& grep 3D | head -1
17:00.0 3D controller: NVIDIA Corporation GA102GL [A10] (rev a1)
This is not bound to any driver at the moment:
Text Only
*-display UNCLAIMED
description: 3D controller
product: GA102GL [A10]
vendor: NVIDIA Corporation
physical id: 0
bus info: pci@0000:17:00.0
version: a1
width: 64 bits
clock: 33MHz
capabilities: pm cap_list
configuration: latency=0
The Vendor ID and Device ID can be found from lspci -nn. These commands tell vfio that it can always claim this device:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# export VID=10de
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# export DID_GPU=2236
We now see it:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# ls -lh /dev/vfio
total 0
crw-rw---- 1 root kvm 241, 0 Aug 14 18:43 25
We should be able to launch a single container with a single GPU bound. Let's test it.
QEMU¶
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# ctr --debug run --runtime /opt/kata/bin/containerd-shim-kata-v2 --runtime-config-path "/opt/kata/share/defaults/kata-containers/configuration-qemu-nvidia-gpu.toml" --device /dev/vfio/25 --rm -t "docker.io/library/archlinux:latest" nvidia-smi
DEBU[0000] remote introspection plugin filters filters="[type==io.containerd.snapshotter.v1, id==overlayfs]"
[root@localhost /]# nvidia-smi
Thu Aug 14 21:02:00 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 575.64.03 Driver Version: 575.64.03 CUDA Version: 12.9 |
|-----------------------------------------+------------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+========================+======================|
| 0 NVIDIA A10 Off | 00000000:02:00.0 Off | 0 |
| 0% 38C P0 63W / 150W | 0MiB / 23028MiB | 6% Default |
| | | N/A |
+-----------------------------------------+------------------------+----------------------+
+-----------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=========================================================================================|
| No running processes found |
+-----------------------------------------------------------------------------------------+
With QEMU, it works just fine.
cloud-hypervisor¶
With clh, it we still get the same IOMMU error:
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# ctr --debug run --runtime /opt/kata/bin/containerd-shim-kata-v2 --runtime-config-path "/opt/kata/share/defaults/kata-containers/configuration-" --device /dev/vfio/25 --rm -t "docker.io/library/archlinux:latest" nvidia-smi
configuration-clh.toml configuration-fc.toml configuration-qemu-coco-dev.toml configuration-qemu-nvidia-gpu-snp.toml configuration-qemu-nvidia-gpu-tdx.toml configuration-qemu-nvidia-gpu.toml configuration-qemu-se.toml configuration-qemu-snp.toml configuration-qemu-tdx.toml configuration-qemu.toml configuration-remote.toml configuration-stratovirt.toml
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# ctr --debug run --runtime /opt/kata/bin/containerd-shim-kata-v2 --runtime-config-path "/opt/kata/share/defaults/kata-containers/configuration-clh.toml" --device /dev/vfio/25 --rm -t "docker.io/library/archlinux:latest" nvidia-smi
DEBU[0000] remote introspection plugin filters filters="[type==io.containerd.snapshotter.v1, id==overlayfs]"
ctr: failed to create shim task: 0000:00:04.0 has no IOMMU group
We can try launching cloud-hypervisor directly and mimic what's happening under the hood. Launch the VM:
Text Only
ubuntu login: root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu/lclipp/caas-experiment/k8s/gpu-device-plugin# /opt/kata/bin/cloud-hypervisor --kernel ./hypervisor-fw --disk path=focal-server-cloudimg-amd64.raw --cpus boot=4 --memory size=1024M --net "tap=,mac=,ip=,mask=" --api-socket=/tmp/ch-socket
Ubuntu 20.04.6 LTS ubuntu hvc0
ubuntu login: root
Password:
Welcome to Ubuntu 20.04.6 LTS (GNU/Linux 5.4.0-216-generic x86_64)
* Documentation: https://help.ubuntu.com
* Management: https://landscape.canonical.com
* Support: https://ubuntu.com/pro
System information as of Fri Aug 15 15:23:45 UTC 2025
System load: 0.04 Memory usage: 19% Processes: 124
Usage of /: 75.8% of 1.96GB Swap usage: 0% Users logged in: 0
Expanded Security Maintenance for Infrastructure is not enabled.
0 updates can be applied immediately.
Enable ESM Infra to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status
The list of available updates is more than a week old.
To check for new updates run: sudo apt update
Last login: Fri Aug 15 15:18:55 UTC 2025 on hvc0
root@ubuntu:~#
We expose an api-socket which is essentially what kata does. In order to hot-plug the device, we use the ch-remote utility to attach to this socket and issue the add-device command.
Text Only
root@inst-5c3dw-san-jose-dev-a10-hypervisors-pool:/home/ubuntu# /tmp/ch-remote-static --api-socket=/tmp/ch-socket add-device path=/sys/bus/pci/devices/0000\:17\:00.0
{"id":"_vfio2","bdf":"0000:00:05.0"}
We can see this in the VM now:
Text Only
root@ubuntu:~# ls -lah /sys/bus/pci/devices/0000\:00\:05.0
lrwxrwxrwx 1 root root 0 Aug 15 15:24 /sys/bus/pci/devices/0000:00:05.0 -> ../../../devices/pci0000:00/0000:00:05.0
However the IOMMU groups is not being configured, which matches the behavior we see in kata:
Text Only
root@ubuntu:~# cat /proc/cmdline
BOOT_IMAGE=/boot/vmlinuz-5.4.0-216-generic root=UUID=0101c7fc-3b92-405d-87d1-ab167be30b9d ro iommu=pt console=tty1 console=ttyS0
root@ubuntu:~# ls -lah /sys/kernel/iommu_groups/
total 0
drwxr-xr-x 2 root root 0 Aug 15 15:31 .
drwxr-xr-x 15 root root 0 Aug 15 15:31 ..
I submitted a Github issue to the kata-containers repo with my findings and the response from the main developer was a death knell:
Quote
You should use the QEMU GPU runtime class. I haven't done any work on CLH to enable proper GPU support. If you want ot use a minimal Rust-VMM you could try runtime-rs with Dragonball.
Regrouping on Strategy¶
After receiving that comment from the kata-containers developer, I realized that it is not going to work for our use-case if we want to stick to cloud-hypervisor. There's two choices I'm presented:
- Resign to using QEMU.
- Look into alternative solutions for tenancy isolation.
One of the main alternatives to kata-containers is gVisor. Instead of running containers inside of a fully-fledged VM, gVisor allows you to run containers inside of a sandboxed environment without a VM. gVisor implements the Linux API: it intercepts all of the container syscalls and forwards these to the host kernel after applying various security measures. This gives you near bare-metal performance while still providing strong sandboxing of the untrusted workloads.
Let's talk about gVisor¶
gVisor is a paravirtualized hypervisor. It relies directly upon the host kernel to execute its tenant's application logic after passing the tenant's syscalls through its own security logic. It's not a VM in the traditional sense of the term. The gVisor docs provide a great summary of how gVisor differs from other traditional virtualization technologies.
Typical VMs run like this:
gVisor works like this:
This model removes the need to virtualize hardware — this may not be entirely relevant due to our comparison against a PCIe-passthrough model, although the certain performance improvement should be noted anyway.
How ioctl GPU commands work¶
PCIe passthrough is not a concept in a gVisor scenario because there is no VM to pass a device through to. Instead, it uses a proxy driver in the sandbox that they call nvproxy. nvproxy intercepts ioctl syscalls and forwards them to the host GPU driver. Because of device pointers and file descriptors, nvproxy must maintain a mapping between the sandbox environment and the host environment. This means nvproxy must understand the Kernel Mode Driver (KMD) Application Binary Interface (ABI). By extension, this means it needs to know the layout of the ioctl structs:
However, the presence of pointers and file descriptors within some ioctl structs forces nvproxy to perform appropriate translations. This requires nvproxy to be aware of the KMD’s ABI, specifically the layout of ioctl structs. The challenge is compounded by the lack of ABI stability guarantees in NVIDIA’s KMD, meaning ioctl definitions can change arbitrarily between releases. While the NVIDIA installer ensures matching KMD and user-mode driver (UMD) component versions, a single gVisor version might be used with multiple NVIDIA drivers. As a result, nvproxy must understand the ABI for each supported driver version, necessitating internal versioning logic for ioctls.
This is a huge business risk because it means any CaaS system we make would be intrinsically hamstrung to only work with the specific GPU devices, drivers, and platforms that gVisor's developers decide to support. This introduces unknown and possibly unbounded risk for companies who wish to support the latest devices coming out of Nvidia.
At the time of writing, gVisor only supports the following devices:
- T4
- A100 and A10G
- L4
- H100
Major Lessons¶
- Ensure your kernel is only using cgroupsv2
- Ensure both containerd (or whatever container runtime you're using) and the kubelet are both using the Systemd cgroup driver.
- Update your kernel to the latest version.
- Update containerd to the latest version.
- Update k8s to the latest version.
- If using kata containers, ensure
runcis still installed for the control plane nodes. - Always use helm charts if available.
- Nvidia GPU Operator and the k8s-device-plugin cannot be used because the hosts cannot have Nvidia drivers installed.
kata-containersdoes not support GPU PCIe passthrough in cloud-hypervisor.
